Specifications

AIMS SKU A0114426
Brand Seco
Model Number 02516543
Barcode Number 16543025000101
Net Weight (kg) 1.54
Designation A32T-PCLNR12

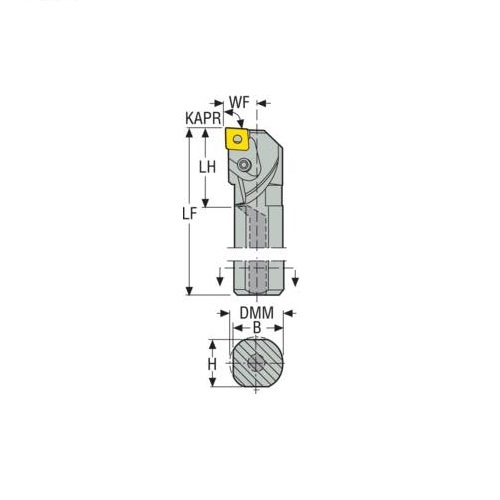

Height Of Tool Holder Shank (H) mm 30
Functional Width (WF) mm 22
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -12.0 deg
Cutting Diameter Internal Minimum (DCINN) 40
Tool Type L Type
Functional Length (LF) 300mm
Shank Diameter (DMM) 32mm
Head Length (LH) mm 50
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 31
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 32
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Pin Lock
