Description

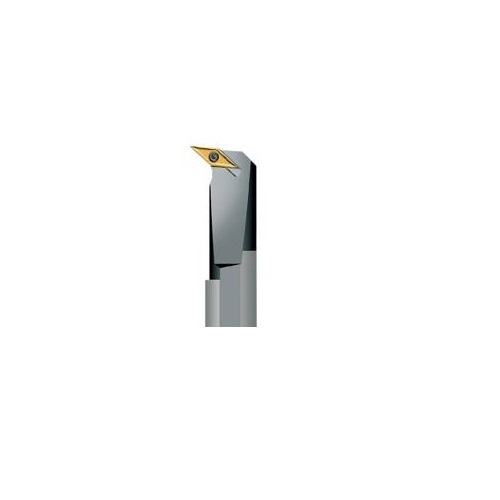

Seco Internal Turning Toolholder Steel Pin Lock

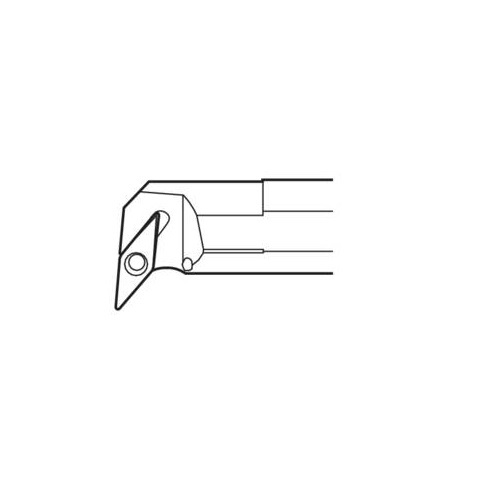

Turning Internal Toolholder (Steel - Pin Lock - L Type - V Insert Shape)

  • Steel with coolant passage.
  • V insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • Pin lock assembly, (NL/PL tool holders).
  • L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114483
  • Brand Seco
  • Model Number 00083568
  • Barcode Number 83568000000107
  • Net Weight (kg) 0.591

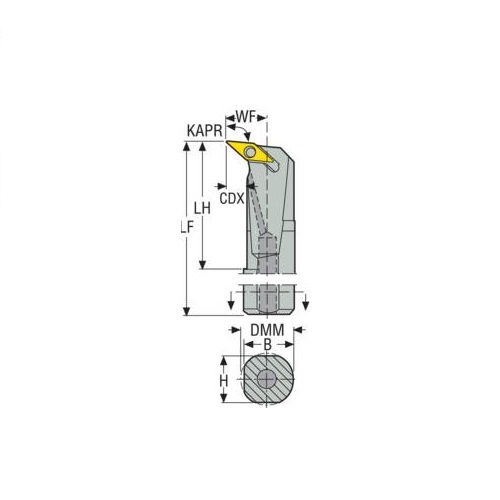

  • Designation A25R-PVLNL13
  • Functional Length (LF) 200mm
  • Cutting Depth Radial Max (CDRX) mm 9.5
  • Cutting Depth Max (CDX) mm 9.5
  • Functional Width (WF) mm 18
  • Cutting Edge Length (mm) 13
  • Inclination Angle (LAMS) -14.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Cutting Diameter Internal Minimum (DCINN) 32
  • Tool Type L Type
  • Shank Diameter (DMM) 25mm
  • Height Of Tool Holder Shank (H) mm 23
  • Head Length (LH) mm 57
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) VN1304
  • Shank Width (b) mm 24
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 25
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Pin Lock

Video

SKU: A0114483

Seco Internal Turning Toolholder Steel Pin Lock 200 x 25 x 13mm Left 95° V Insert Shape A25R-PVLNL13

Turning Internal Toolholder (Steel - Pin Lock - L Type)

$435.60
RRP $544.50
SAVE $108.90 (20%)
