Description

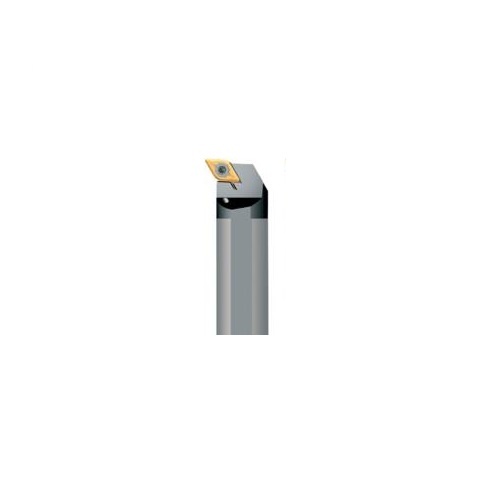

Seco Internal Turning Toolholder Steel Pin Lock

Turning Internal Toolholder (Steel - Pin Lock - U Type - D Insert Shape - 11mm Cutting Edge Length)

  • Steel with coolant passage.
  • D insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • 11mm cutting edge length.
  • Pin lock assembly, (NL/PL tool holders).
  • U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

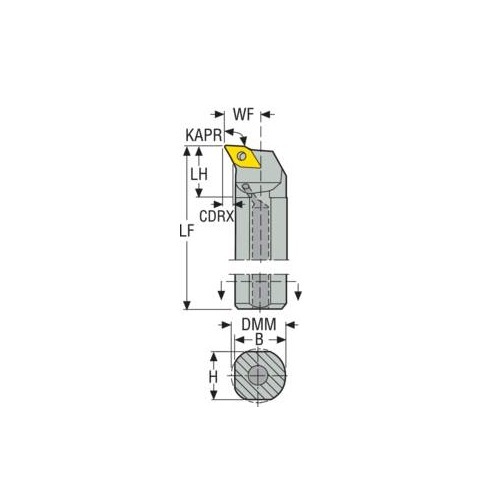

Specifications

  • AIMS SKU A0114439
  • Brand Seco
  • Model Number 00083821
  • Barcode Number 83821000000103
  • Net Weight (kg) 0.636
  • Designation A25R-PDUNL11
  • Functional Length (LF) 200mm
  • Cutting Depth Radial Max (CDRX) mm 4
  • Cutting Depth Max (CDX) mm 4
  • Functional Width (WF) mm 17
  • Cutting Edge Length (mm) 11
  • Inclination Angle (LAMS) -13.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) U
  • Cutting Diameter Internal Minimum (DCINN) 32
  • Tool Type U Type
  • Shank Diameter (DMM) 25mm
  • Height Of Tool Holder Shank (H) mm 23
  • Head Length (LH) mm 35
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) DN1104
  • Shank Width (b) mm 24
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 25
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Pin Lock

Video

SKU: A0114439

Seco Internal Turning Toolholder Steel Pin Lock 200 x 25 x 11mm Left 93° D Insert Shape A25R-PDUNL11

Turning Internal Toolholder (Steel - Pin Lock - U Type)

$413.60
RRP $517.00
SAVE $103.40 (20%)
