Seco Turning Internal Toolholder (Steel - Pin Lock - U Type) Right - SECO

Description

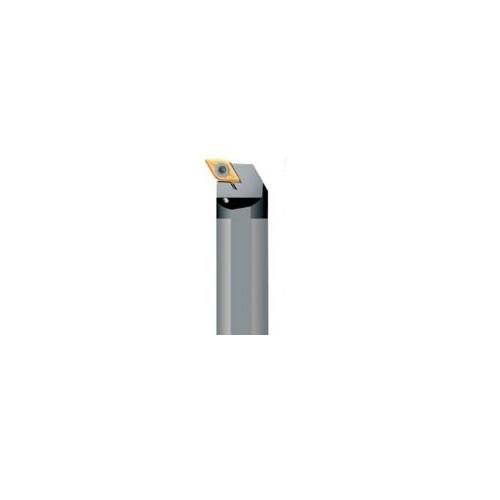

Seco Internal Turning Toolholder Steel Pin Lock

Turning Internal Toolholder (Steel - Pin Lock - U Type - D Insert Shape - 11mm Cutting Edge Length)

Steel with coolant passage.
D insert shape.
0° ISCA (Insert Side Clearance Angles).
11mm cutting edge length.
Pin lock assembly, (NL/PL tool holders).
U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114441

Brand Seco

Model Number 00083820

Barcode Number 83820000000106

Net Weight (kg) 0.634

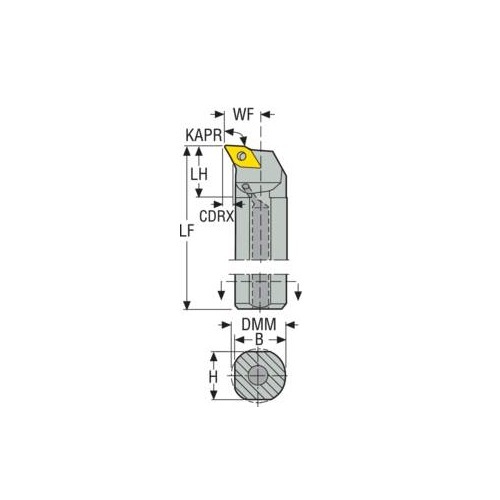

Designation A25R-PDUNR11

Functional Length (LF) 200mm

Cutting Depth Radial Max (CDRX) mm 4

Cutting Depth Max (CDX) mm 4

Functional Width (WF) mm 17

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) -13.0 deg

Tool Cutting Edge Angle Code (KAPRC) U

Cutting Diameter Internal Minimum (DCINN) 32

Tool Type U Type

Shank Diameter (DMM) 25mm

Height Of Tool Holder Shank (H) mm 23

Head Length (LH) mm 35

Tool Cutting Edge Angle (KAPR) 93.0 deg

Connection Text Workpiece Side (ctws) DN1104

Shank Width (b) mm 24

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 25

Rake Angle Orthogonal (gamo) -5.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Pin Lock
