Specifications

AIMS SKU A0114459
Brand Seco
Model Number 75079501
Barcode Number 79501750000109
Net Weight (kg) 0.73
Designation A25R-PDYNL11

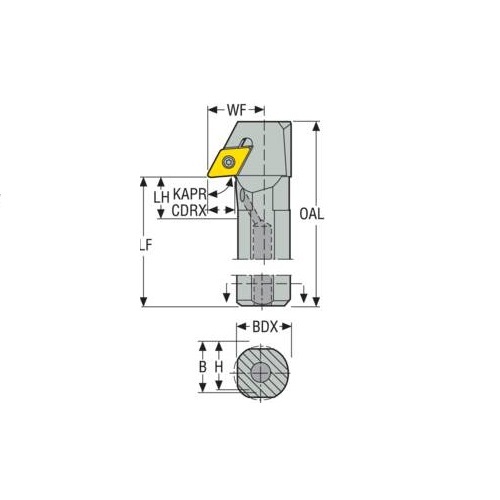

Functional Length (LF) 200mm
Body Diameter Max (BDX) mm 25
Cutting Depth Radial Max (CDRX) mm 10
Cutting Depth Max (CDX) mm 10
Functional Width (WF) mm 22.5
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -13.0 deg
Tool Cutting Edge Angle Code (KAPRC) Y
Cutting Diameter Internal Minimum (DCINN) 45
Tool Type Y Type
Shank Diameter (DMM) 25mm
Overall Length (OAL) mm 220
Height Of Tool Holder Shank (H) mm 23
Head Length (LH) mm 13
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 24
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -5.0 deg

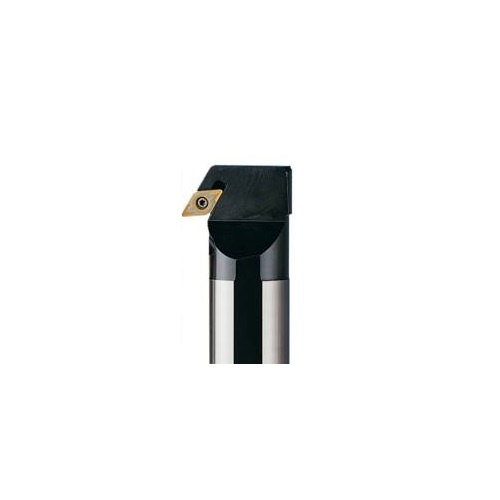

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Pin Lock
