Seco Turning Internal Toolholder (Steel - Screw Lock - F Type) Left - SECO

Description

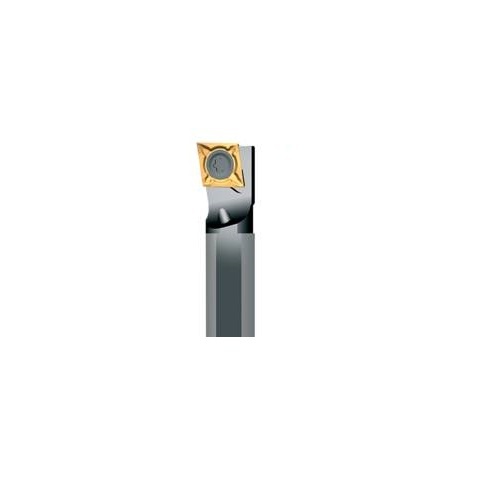

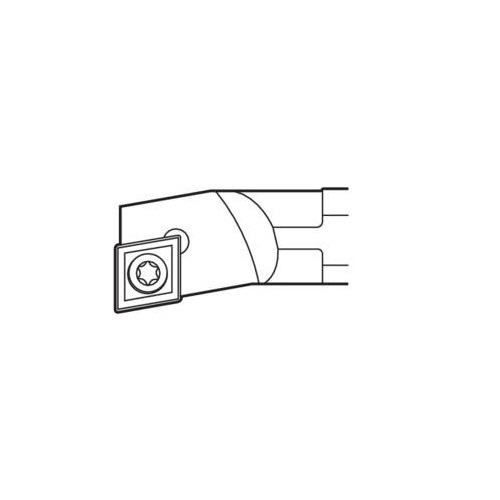

Seco Internal Turning Toolholder Steel Screw Lock 125 x 8 x 6mm Left 90° C Insert Shape - Round A08K-SCFCL06-R

Turning Internal Toolholder (Steel - Screw Lock - F Type - C Insert Shape - Round)

Steel with coolant passage.
C insert shape.
7° ISCA (Insert Side Clearance Angles).
Round internal designation.
Screw lock.
F tool type, offset shank with 0° (90°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114530

Brand Seco

Model Number 02516589

Barcode Number 16589025000109

Net Weight (kg) 0.039

Designation A08K-SCFCL06-R

Rake Angle Orthogonal (gamo) 0.0 deg

Connection Text Machine Side (CTMS) 8

Direction Of Cutting (hand) Left

Connection Text Workpiece Side (ctws) CC0602

Tool Cutting Edge Angle (KAPR) 90.0 deg

Head Length (LH) mm 12

Shank Diameter (DMM) 8

Functional Length (LF) 125

Tool Type F Type

Cutting Diameter Internal Minimum (DCINN) 10

Tool Cutting Edge Angle Code (KAPRC) F

Inclination Angle (LAMS) -11.0 deg

Cutting Edge Length (mm) 6

Functional Width (WF) mm 5

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Screw Lock
