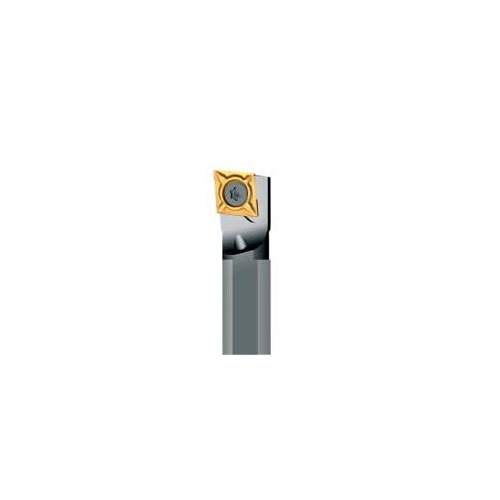

Seco Internal Turning Toolholder Steel Screw Lock Right 95° C Insert Shape A12N-SCLCR09

Turning Internal Toolholder (Steel - Screw Lock - L Type - C Insert Shape - 9mm Cutting Edge Length)

  • Steel with coolant passage.
  • C insert shape.
  • 7° ISCA (Insert Side Clearance Angles).
  • Screw lock.
  • 9mm cutting edge length.
  • L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114563
  • Brand Seco
  • Model Number 02413812
  • Barcode Number 13812024000102
  • Net Weight (kg) 0.113
  • Designation A12N-SCLCR09
  • Shank Diameter (DMM) 12
  • Functional Width (WF) mm 9
  • Cutting Edge Length (mm) 9
  • Inclination Angle (LAMS) -11.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Cutting Diameter Internal Minimum (DCINN) 17
  • Tool Type L Type
  • Functional Length (LF) 160
  • Height Of Tool Holder Shank (H) mm 11
  • Head Length (LH) mm 20
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) CC09T3
  • Shank Width (b) mm 11.5
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 12
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0114563

Seco Internal Turning Toolholder Steel Screw Lock 160 x 12 x 9mm Right 95° C Insert Shape A12N-SCLCR09

Turning Internal Toolholder (Steel - Screw Lock - L Type

$190.08
RRP $237.60
SAVE $47.52 (20%)
