Specifications

AIMS SKU A0114586
Brand Seco
Model Number 00093834
Barcode Number 93834000000100
Net Weight (kg) 0.067
Designation A10L-SDQCL07-R
Tool Type Q Type

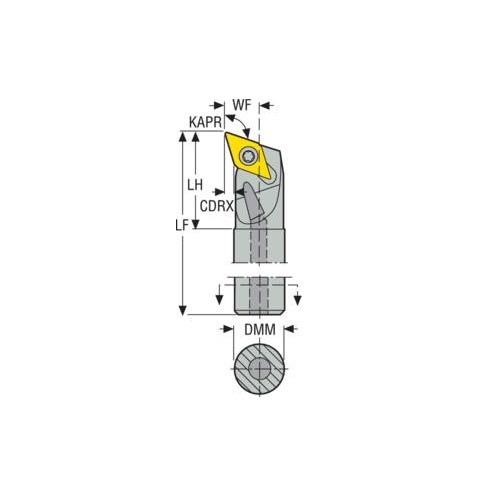

Cutting Depth Radial Max (CDRX) mm 1.5
Cutting Depth Max (CDX) mm 1.5
Functional Width (WF) mm 7
Cutting Edge Length (mm) 7
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 13
Functional Length (LF) 140
Shank Diameter (DMM) 10
Head Length (LH) mm 18
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) DC0702
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 10
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
