Specifications

AIMS SKU A0114592
Brand Seco
Model Number 00083824
Barcode Number 83824000000104
Net Weight (kg) 0.207
Designation A16M-SDQNL11

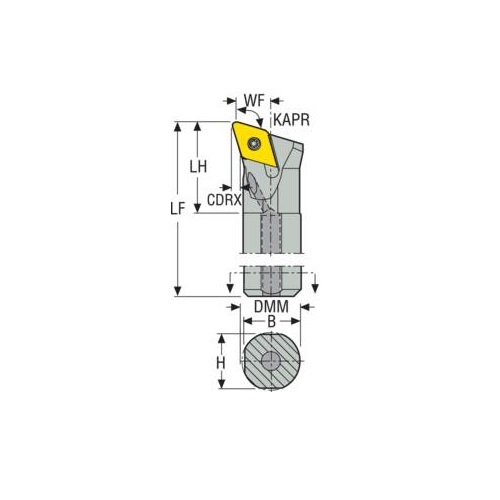

Functional Length (LF) 150
Cutting Depth Radial Max (CDRX) mm 2.5
Cutting Depth Max (CDX) mm 2.5
Functional Width (WF) mm 11
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -20.0 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 20
Tool Type Q Type
Shank Diameter (DMM) 16
Height Of Tool Holder Shank (H) mm 15
Head Length (LH) mm 20
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 15.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 16
Rake Angle Orthogonal (gamo) -5.0 deg

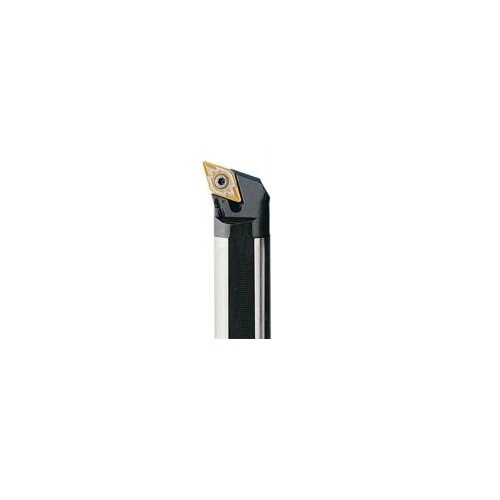

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
