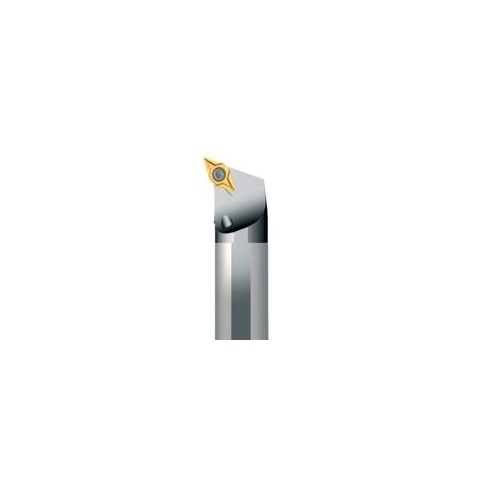

Seco Internal Turning Toolholder Steel Screw Lock Right 107.5° D Insert Shape A16Q-SDQCR07

Turning Internal Toolholder (Steel - Screw Lock - Q Type - D Insert Shape - 7° ISCA)

  • Steel with coolant passage.
  • D insert shape.
  • 7° ISCA (Insert Side Clearance Angles).
  • Screw lock.
  • Q tool type, offset shank with negative 17.5° (107.5°) cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114597
  • Brand Seco
  • Model Number 00093837
  • Barcode Number 93837000000101
  • Net Weight (kg) 0.243
  • Designation A16Q-SDQCR07

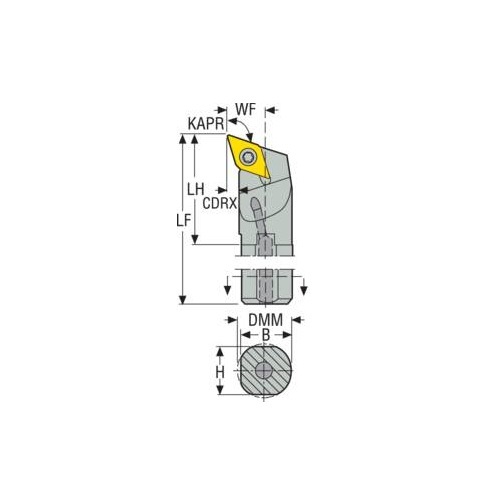

  • Functional Length (LF) 180
  • Cutting Depth Radial Max (CDRX) mm 2.5
  • Cutting Depth Max (CDX) mm 2.5
  • Functional Width (WF) mm 11
  • Cutting Edge Length (mm) 7
  • Inclination Angle (LAMS) -5.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) Q
  • Cutting Diameter Internal Minimum (DCINN) 22
  • Tool Type Q Type
  • Shank Diameter (DMM) 16
  • Height Of Tool Holder Shank (H) mm 15
  • Head Length (LH) mm 22
  • Tool Cutting Edge Angle (KAPR) 107.5 deg
  • Connection Text Workpiece Side (ctws) DC0702
  • Shank Width (b) mm 15.5
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 16
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Screw Lock
SKU: A0114597

Seco Internal Turning Toolholder Steel Screw Lock 180 x 16 x 7mm Right 107.5° D Insert Shape A16Q-SDQCR07

Turning Internal Toolholder (Steel - Screw Lock - Q Type

$190.08
RRP $237.60
SAVE $47.52 (20%)
