Specifications

AIMS SKU A0114618
Brand Seco
Model Number 00083817
Barcode Number 83817000000106
Net Weight (kg) 0.21

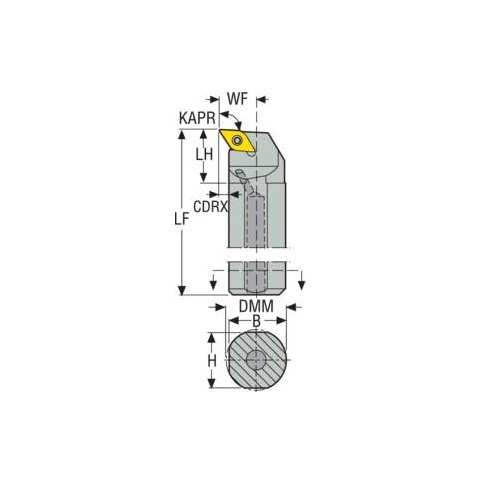

Designation A16M-SDUNL11
Functional Length (LF) 150
Cutting Depth Radial Max (CDRX) mm 2.5
Cutting Depth Max (CDX) mm 2.5
Functional Width (WF) mm 11
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -17.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 20
Tool Type U Type
Shank Diameter (DMM) 16
Height Of Tool Holder Shank (H) mm 15
Head Length (LH) mm 20
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 15.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 16
Rake Angle Orthogonal (gamo) -5.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
