Specifications

AIMS SKU A0114622
Brand Seco
Model Number 00014820
Barcode Number 14820000000106
Net Weight (kg) 0.42
Designation A10-SDUNR-3

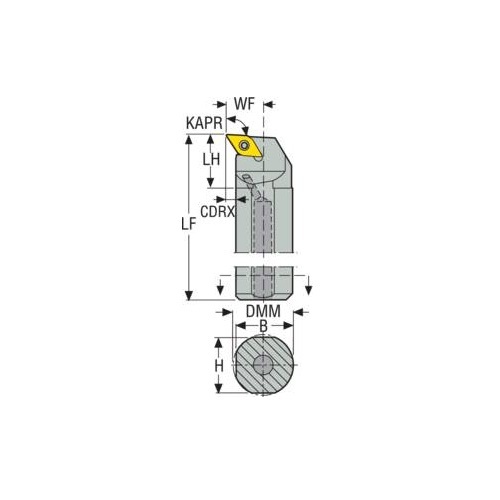

Shank Diameter (DMM) 15.88
Insert Size Inscribed Circle Diameter (mm) 3
Cutting Depth Radial Max (CDRX) mm 2.5
Cutting Depth Max (CDX) mm 2.5
Functional Width (WF) mm 12.7
Inclination Angle (LAMS) -14.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 21.59
Tool Type U Type
Functional Length (LF) 254
Height Of Tool Holder Shank (H) mm 13.5
Head Length (LH) mm 40.6
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 15.3
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 15.88
Rake Angle Axial (gamp) -14.0 deg
Rake Angle Orthogonal (gamo) -5.0 deg

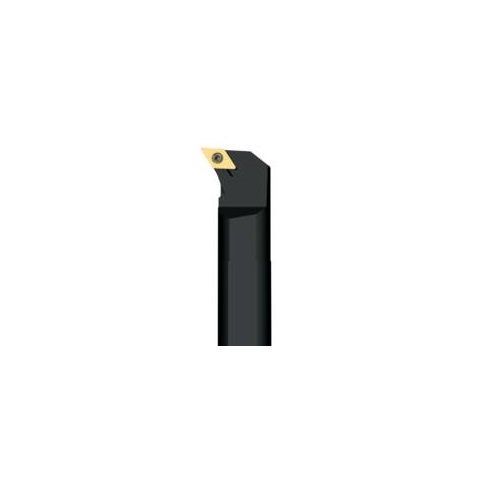

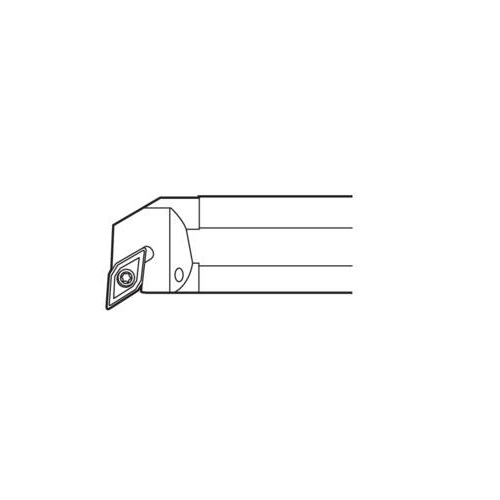

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
