Specifications

AIMS SKU A0114643
Brand Seco
Model Number 00054839
Barcode Number 54839000000106
Net Weight (kg) 0.007
Designation A05D-STFDR06

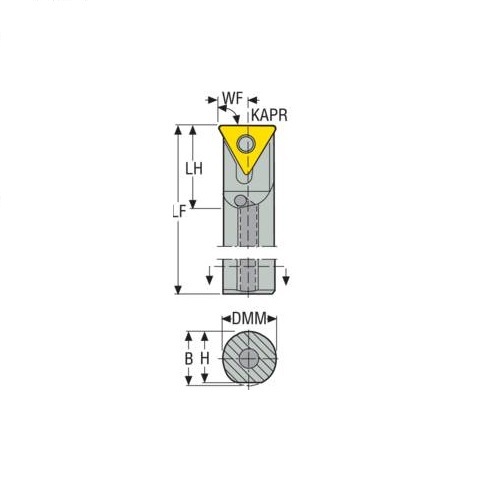

Shank Diameter (DMM) 5
Functional Width (WF) mm 3
Cutting Edge Length (mm) 6
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 6.8
Tool Type F Type
Functional Length (LF) 60
Height Of Tool Holder Shank (H) mm 4.7
Head Length (LH) mm 9.7
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) TD06T0
Shank Width (b) mm 5
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 5
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
