Specifications

AIMS SKU A0114649
Brand Seco
Model Number 00054775
Barcode Number 54775000000107
Net Weight (kg) 0.007

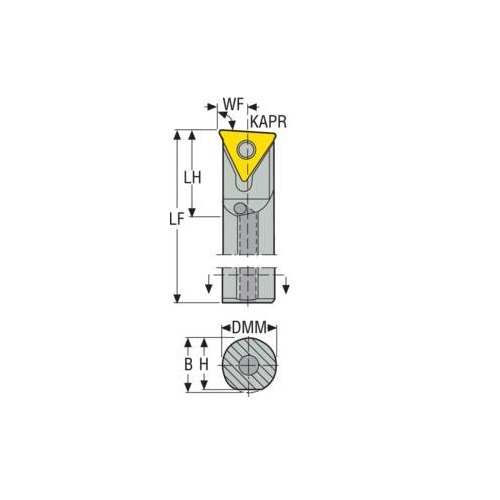

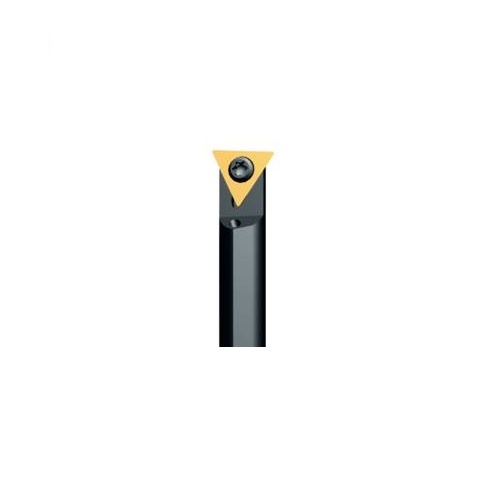

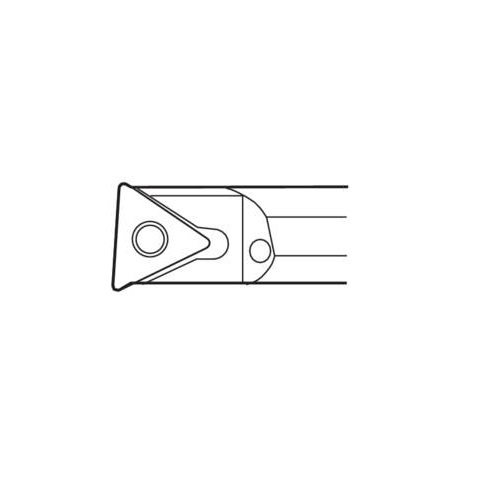

Designation A05D-STLDR06
Shank Diameter (DMM) 5
Functional Width (WF) mm 3
Cutting Edge Length (mm) 6
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Cutting Diameter Internal Minimum (DCINN) 6.8
Tool Type L Type
Functional Length (LF) 60
Height Of Tool Holder Shank (H) mm 4.7
Head Length (LH) mm 9.7
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) TD06T0
Shank Width (b) mm 5
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 5
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
