Specifications

AIMS SKU A0114667
Brand Seco
Model Number 00093873
Barcode Number 93873000000109
Net Weight (kg) 0.269
Designation A16R-SVQBR11

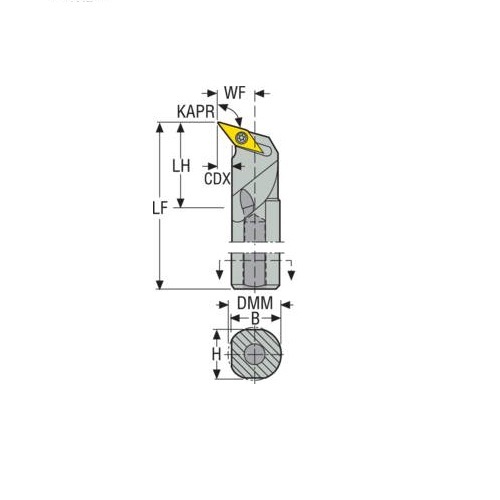

Functional Length (LF) 200
Cutting Depth Radial Max (CDRX) mm 4.5
Cutting Depth Max (CDX) mm 4.5
Functional Width (WF) mm 13
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -7.0 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 22
Tool Type Q Type
Shank Diameter (DMM) 16
Height Of Tool Holder Shank (H) mm 15
Head Length (LH) mm 25
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) VB1102
Shank Width (b) mm 15
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 16
Rake Angle Orthogonal (gamo) 0.0 deg

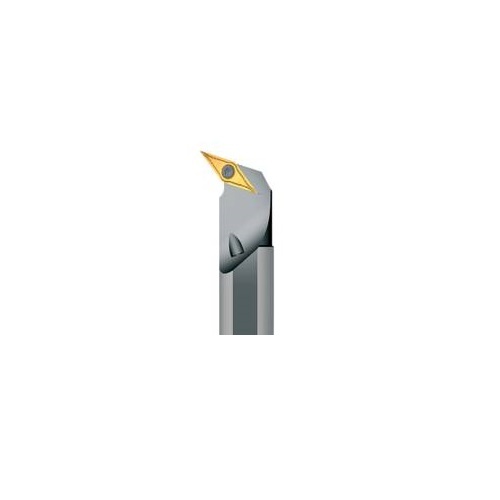

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
