Specifications

AIMS SKU A0114679
Brand Seco
Model Number 00002703
Barcode Number 2703000000107
Net Weight (kg) 0.56

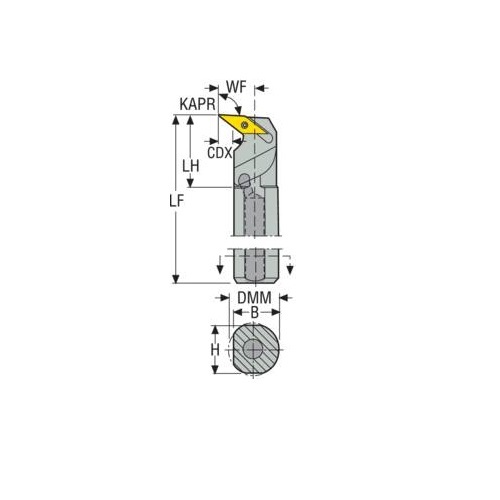

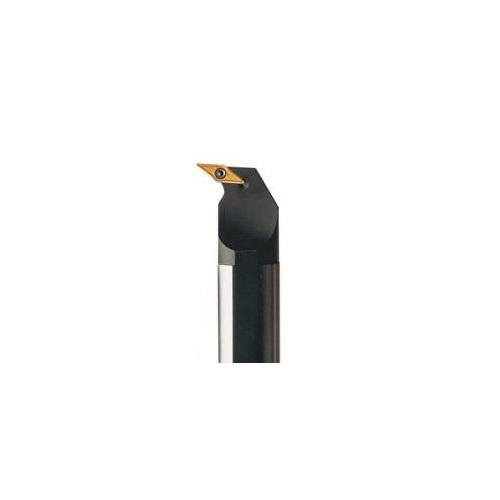

Designation A12-SVUBL-2
Shank Diameter (DMM) 19.05
Insert Size Inscribed Circle Diameter (mm) 2
Cutting Depth Radial Max (CDRX) mm 4.5
Cutting Depth Max (CDX) mm 4.5
Functional Width (WF) mm 28.6
Inclination Angle (LAMS) -5.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 28.58
Tool Type U Type
Functional Length (LF) 254
Height Of Tool Holder Shank (H) mm 18
Head Length (LH) mm 36.3
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) VB1102
Shank Width (b) mm 18.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 19.05
Rake Angle Axial (gamp) -5.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
