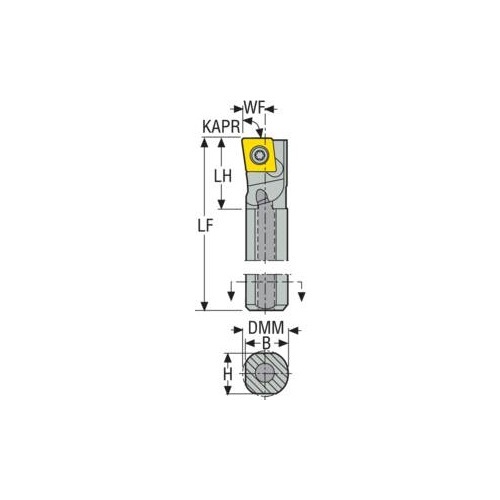

Specifications

AIMS SKU A0114518
Brand Seco
Model Number 00093715
Barcode Number 93715000000102
Net Weight (kg) 0.115
Designation A12N-SCFCL09
Shank Diameter (DMM) 12mm
Functional Width (WF) mm 9
Cutting Edge Length (mm) 9
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 17
Tool Type F Type
Functional Length (LF) 160mm
Height Of Tool Holder Shank (H) mm 11
Head Length (LH) mm 20
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) CC09T3
Shank Width (b) mm 11.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 12
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
