Specifications

AIMS SKU A0114516
Brand Seco
Model Number 00093710
Barcode Number 93710000000107
Net Weight (kg) 0.035
Designation A08K-SCFCR06

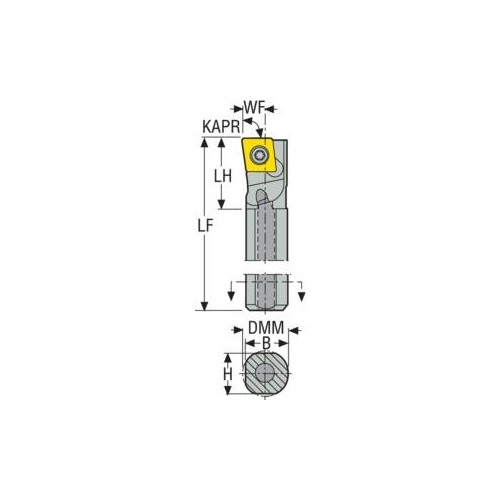

Shank Diameter (DMM) 8mm
Functional Width (WF) mm 5
Cutting Edge Length (mm) 6
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 10
Tool Type F Type
Functional Length (LF) 125mm
Height Of Tool Holder Shank (H) mm 7
Head Length (LH) mm 12
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) CC0602
Shank Width (b) mm 7.5
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 8
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
