Seco Turning Internal Toolholder (Steel - Top Clamp - U Type) - SECO

Description

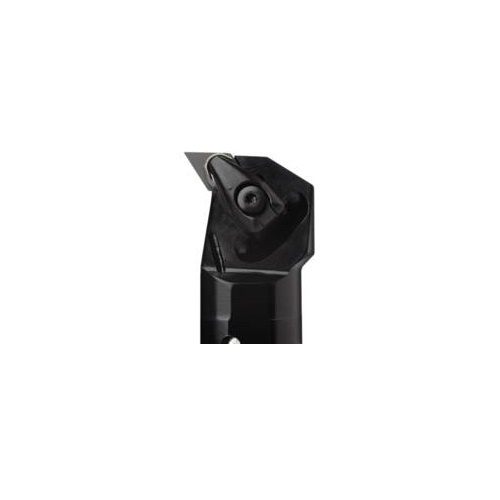

Seco Internal Turning Toolholder Steel Top Clamp

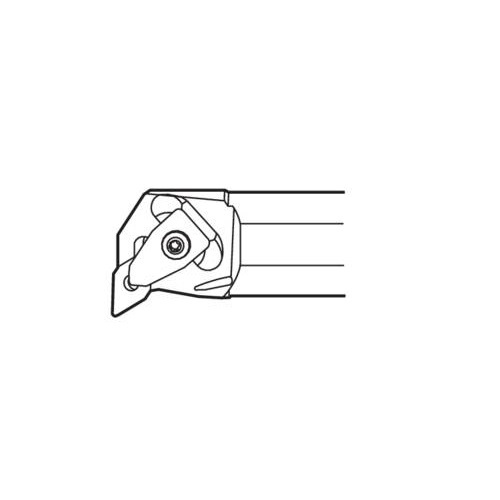

Turning Internal Toolholder (Steel - Top Clamp - U Type - D Insert Shape)

Steel with coolant passage.
D insert shape.
0° ISCA (Insert Side Clearance Angles).
Top clamp using center hole.
U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114324

Brand Seco

Model Number 02598552

Barcode Number 98552025000107

Net Weight (kg) 0.646

Designation A25R-DDUNL11-C

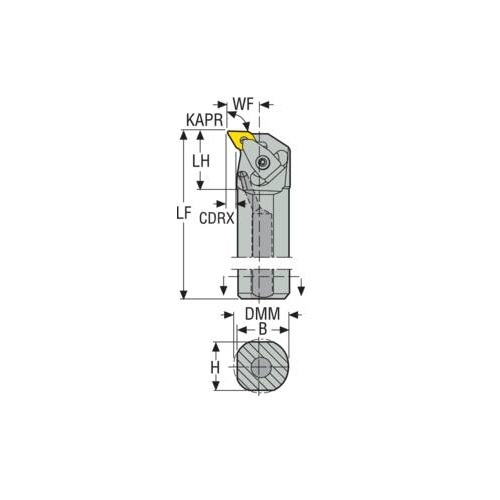

Functional Length (LF) 200mm

Cutting Depth Max (CDX) mm 4

Cutting Depth Radial Max (mm) 4

Functional Width (WF) mm 17

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) -13.0 deg

Tool Cutting Edge Angle Code (KAPRC) U

Cutting Diameter Internal Minimum (DCINN) 32

Tool Type U Type

Shank Diameter (DMM) 25mm

Height Of Tool Holder Shank (H) mm 23

Head Length (LH) mm 27

Tool Cutting Edge Angle (KAPR) 93.0 deg

Connection Text Workpiece Side (ctws) DN1104

Shank Width (b) mm 24

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 25

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Top Clamp
