Seco Turning Toolholder for Boring Screw Lock 50 x 6.2 x 6mm Left 60° C Insert Shape SCECL1010C06

Description

Seco Turning Toolholder for Boring Screw Lock 50 x 6.2 x 6mm Left 60° C Insert Shape SCECL1010C06

Turning Toolholder for Boring (Screw Lock - E Type - C Insert Shape)

Screw lock.
C insert shape.
E tool type, straight shank with 30° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115593

Brand Seco

Model Number 75011225

Barcode Number 11225750000100

Net Weight (kg) 0.035

Designation SCECL1010C06

Type Turning Toolholder for Boring

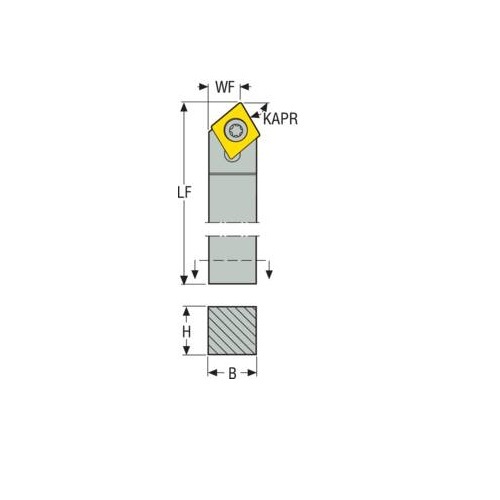

Functional Length (LF) 50mm

Shank Type Square shank

Insert Shape Code (SC) C

Functional Width (WF) mm 6.2

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) E

Cutting Diameter Internal Minimum (DCINN) 219.5

Tool Type E Type

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Clamping System (ICS) Screw Lock

Height Of Tool Holder Shank (H) mm 10

Tool Cutting Edge Angle (KAPR) 60.0 deg

Connection Text Workpiece Side (ctws) CC0602

Shank Width (b) mm 10

Version (internal/external/both) External

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 1010
