Specifications

AIMS SKU A0115592
Brand Seco
Model Number 75011223
Barcode Number 11223750000106
Net Weight (kg) 0.063
Designation SCACL1212D09

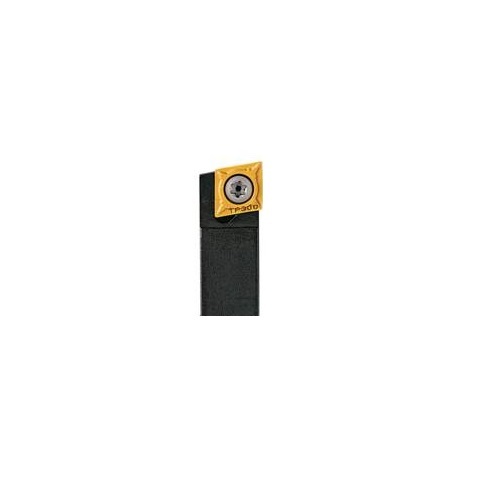

Type Turning Toolholder for Boring
Insert Clamping System (ICS) Screw Lock
Shank Type Square shank
Insert Shape Code (SC) C

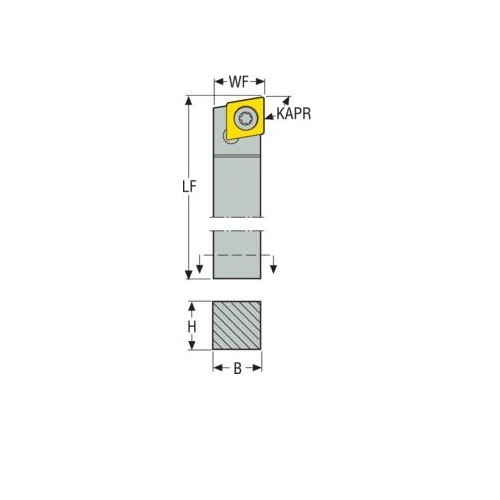

Functional Width (WF) mm 13
Cutting Edge Length (mm) 9
Inclination Angle (LAMS) 0.0 deg
Tool Cutting Edge Angle Code (KAPRC) A
Tool Type A Type
Functional Length (LF) 60mm
Rake Angle Orthogonal (gamo) 0.0 deg
Height Of Tool Holder Shank (H) mm 12
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) CC09T3
Shank Width (b) mm 12
Version (internal/external/both) External
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 1212
