Specifications

AIMS SKU A0114507
Brand Seco
Model Number 75011125
Barcode Number 11125750000103
Net Weight (kg) 0.009
Designation S08A-SCACL06

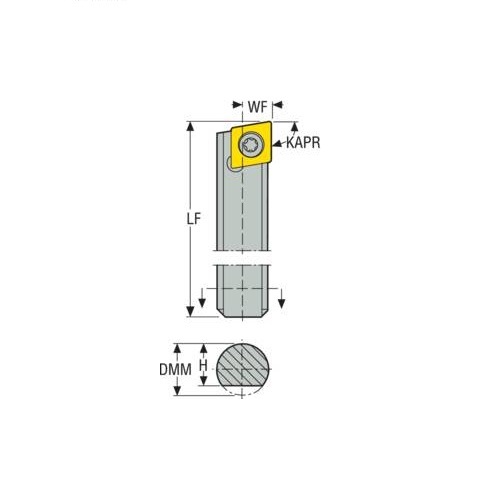

Shank Diameter (DMM) 8mm
Cutting Diameter Internal Minimum 3 (mm) 8
Functional Width (WF) mm 4.2
Cutting Edge Length (mm) 6
Inclination Angle (LAMS) 0.0 deg
Tool Cutting Edge Angle Code (KAPRC) A
Tool Type A Type
Functional Length (LF) 32mm
Height Of Tool Holder Shank (H) mm 6.3
Tool Cutting Edge Angle (KAPR) 90.0 deg
Functional Height (HF) mm 6.3
Connection Text Workpiece Side (ctws) CC0602
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 8
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder for Boring
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Screw Lock
