Specifications

AIMS SKU A0114510
Brand Seco
Model Number 75011161
Barcode Number 11161750000101
Net Weight (kg) 0.007
Designation S08A-SCDCL06
Rake Angle Orthogonal (gamo) 0.0 deg
Connection Text Machine Side (CTMS) 8
Direction Of Cutting (hand) Left
Connection Text Workpiece Side (ctws) CC0602
Functional Height (HF) mm 6.3
Tool Cutting Edge Angle (KAPR) 45.0 deg
Height Of Tool Holder Shank (H) mm 6.3
Shank Diameter (DMM) 8mm
Functional Length (LF) 32mm
Tool Type D Type
Inclination Angle (LAMS) 0.0 deg
Cutting Edge Length (mm) 6
Functional Width (WF) mm 0.3
Cutting Diameter Internal Minimum 3 (mm) 8

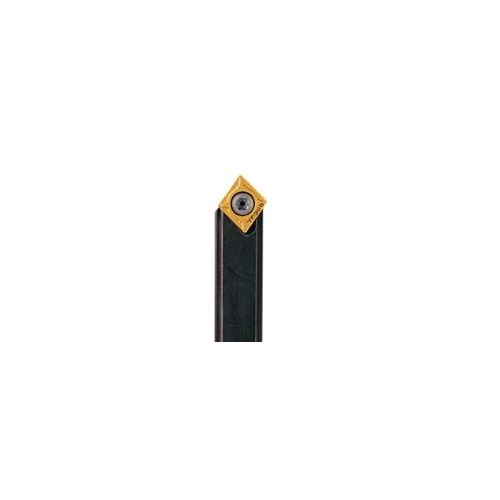

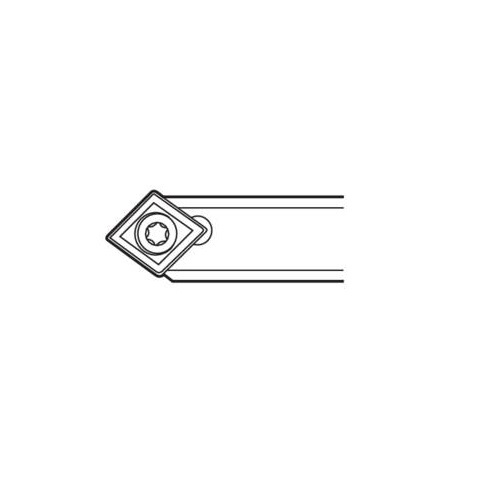

• Type Turning Toolholder for Boring
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Screw Lock
