Description

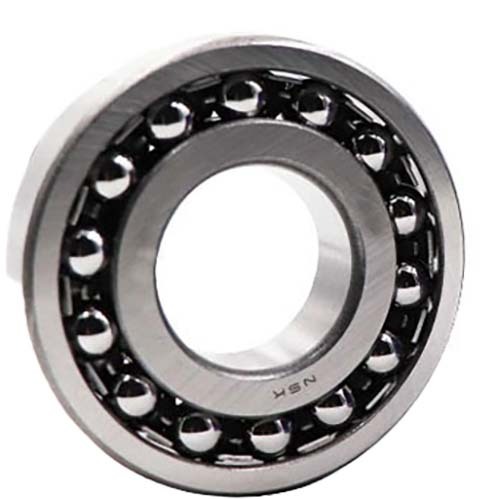

Self Aligning Ball Bearing Cylindrical Bore

Cylindrical bore.
The inner ring of this type of bearing has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis.
Therefore, the axis of the inner ring, balls, and cage can deflect to some extent around the bearing center.
Consequently, minor angular misalignment of the shaft and housing caused by the machining or mounting error is automatically corrected.
This type of bearing often has a tapered bore for mounting using an adapter sleeve.

About Self Aligning Ball Bearing

The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls, and cage can deflect to some extent around the bearing center.
This type is recommended when the alignment of the shaft and housing is difficult and when the shaft may bend.
Since the contact angle is small, the axial load capacity is low.
Pressed steel cages are usually used.

Specifications

AIMS SKU A0154016

Brand NSK

Model Number 1211/NSK

Basic Load Rating Cr (N) 26900

Outer Diameter D (mm) 100

Axial Load Factors Y0 3.3

Axial Load Factors Y3 3.2

Axial Load Factors Y2 4.9

Limiting Speeds Oil 7100

Limiting Speeds Grease 6000

Basic Load Rating C0r(kgf) 1020

Basic Load Rating Cr (kgf) 2750

Basic Load Rating C0r(N) 10000

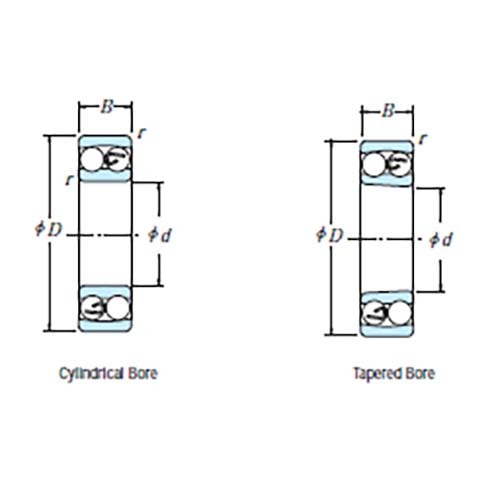

Bore Diameter x Outer Diameter x Width (mm) 55 x 100 x 21

ra max. 1.5

Width B (mm) 21

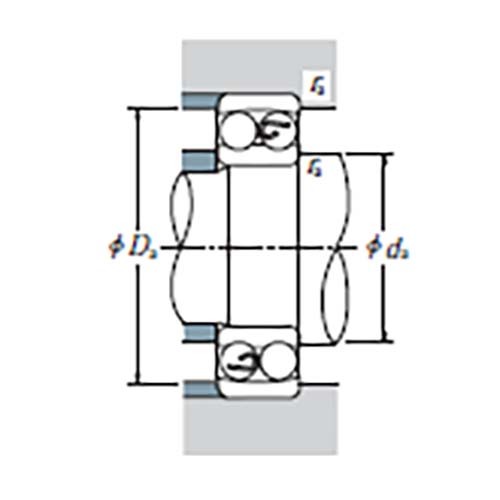

da Max. 92

da Min. 63

Bore Diameter d (mm) 55

R 1.5

E 0.2

Mass (kg) 0.705
