*** JTEKT (Formerly Koyo Brand) ***

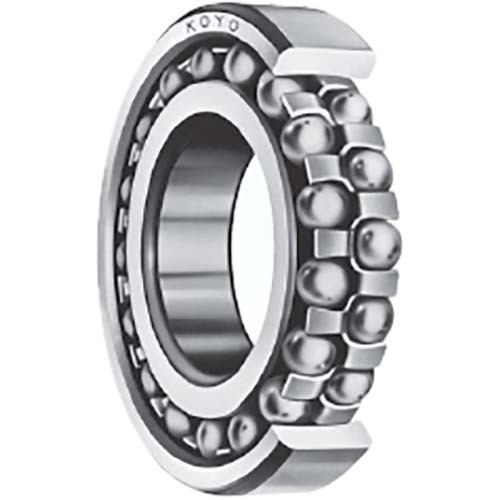

Self Aligning Ball Bearing Cylindrical Bore 1300 Series

  • Cylindrical Bore.
  • 1300 Series.

About Self Aligning Ball Bearing

  • Self-aligning ball bearings have a spherical outer ring raceway, the center of whose curvature meets that of the bearing itself, so that the inner ring, balls, and cage continue to rotate, aligning themselves if they have become misaligned within design limits.
  • This type of bearing is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur.
  • Bearings with a tapered bore can easily be fit to the shaft with an adapter assembly.

Features of Self Aligning Ball Bearing

  • The Self-Aligning ball bearing has two rows of balls.
  • The balls roll on a spherical outer ring raceway.
  • The inner ring, balls, and retainer can align themselves and accommodate for the shaft and housing misalignment and deflections.
  • The tapered bore design allows for easy mounting with an adaptor sleeve.
  • Pressed steel cages are either a staggered or snap-type.

Main Applications

  • Power transmission shafts of woodworking and spinning machines Plummer blocks.

Specifications

  • AIMS SKU A0153376
  • Brand Koyo
  • Model Number 1305/KOYO

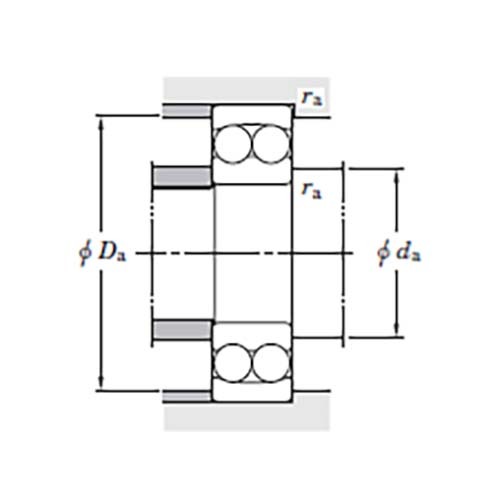

  • Mounting Dimension (mm) Ra Max. 1
  • Mass (kg) Cylindrical Bore 0.257
  • Axial Load Factor Y0 2.42
  • Axial Load Factor Y2 3.57
  • Axial Load Factor Y1 2.31
  • Constant E 0.27
  • Limiting Speed (min-1) Lub. Oil 12000
  • Limiting Speed (min-1) Grease Oil 9900
  • Boundary Dimension (mm) r min. 1.1

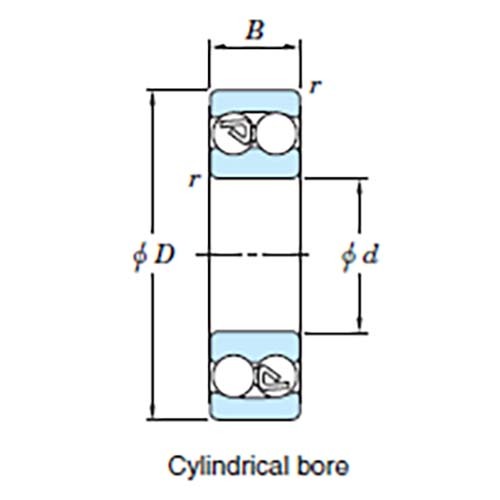

  • Bore Diameter x Outer Diameter x Width (mm) 25 x 62 x 17
  • Mounting Dimension (mm) Da Max. 55.5
  • Mounting Dimension (mm) Da Min. 31.5
  • Fatigue Load Limit (kN) Cu 0.32
  • Basic Load Rating (kN) C0r 5.05
  • Basic Load Rating (kN) Cr 18
  • Bearing Width B (mm) 17
  • Outside Diameter D (mm) 62
  • Bore Diameter d (mm) 25
  • Type Self Aligning Ball Bearing
  • Series 1300 Series
SKU: A0153376

Koyo/JTEKT 1305 Self Aligning Ball Bearing Cylindrical Bore 25 x 62 x 17mm

Self Aligning Ball Bearing Cylindrical Bore 1300 Series

$64.93
