Self Aligning Ball Bearing Tapered Bore

  • Tapered bore.
  • The inner ring of this type of bearing has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis.
  • Therefore, the axis of the inner ring, balls, and cage can deflect to some extent around the bearing center.
  • Consequently, minor angular misalignment of the shaft and housing caused by the machining or mounting error is automatically corrected.
  • This type of bearing often has a tapered bore for mounting using an adapter sleeve.

About Self Aligning Ball Bearing

  • The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls, and cage can deflect to some extent around the bearing center.
  • This type is recommended when the alignment of the shaft and housing is difficult and when the shaft may bend.
  • Since the contact angle is small, the axial load capacity is low.
  • Pressed steel cages are usually used.

Specifications

  • AIMS SKU A0154019
  • Brand NSK
  • Model Number 1305K/NSK
  • Basic Load Rating Cr (N) 18200
  • Outer Diameter D (mm) 62
  • Axial Load Factors Y0 2.4
  • Axial Load Factors Y3 2.3
  • Axial Load Factors Y2 3.5
  • Limiting Speeds Oil 13000
  • Limiting Speeds Grease 10000
  • Basic Load Rating C0r(kgf) 510
  • Basic Load Rating Cr (kgf) 1850
  • Basic Load Rating C0r(N) 5000

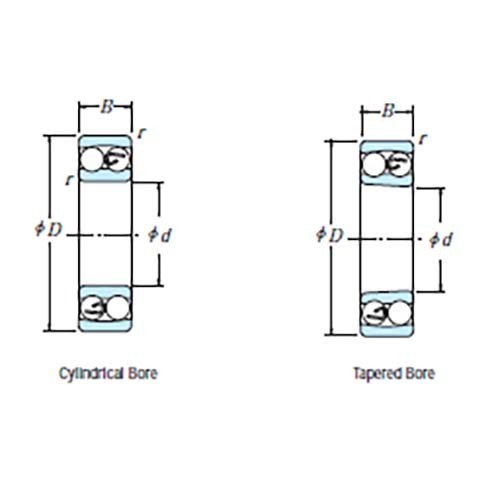

  • Bore Diameter x Outer Diameter x Width (mm) 25 x 62 x 17

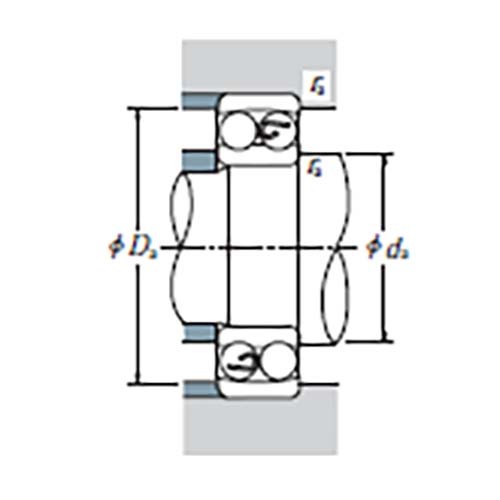

  • ra max. 1
  • Width B (mm) 17
  • da Max. 55.5
  • da Min. 31.5
  • Bore Diameter d (mm) 25
  • R 1.1
  • E 0.28
  • Mass (kg) 0.255
  • Type Self Aligning Ball Bearings
  • Series 1200-1300 Series
SKU: A0154019

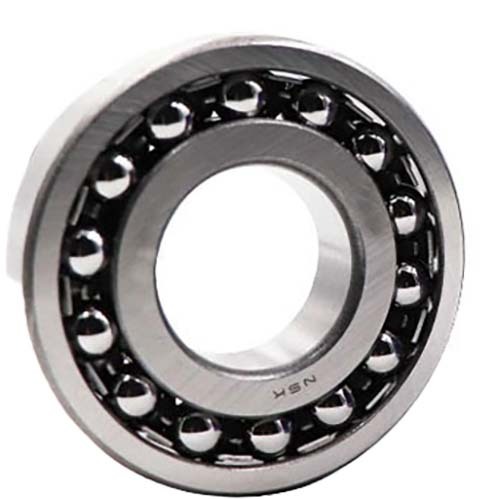

NSK 1305K Self Aligning Ball Bearing Tapered Bore 25 x 62 x 17mm
