*** JTEKT (Formerly Koyo Brand) ***

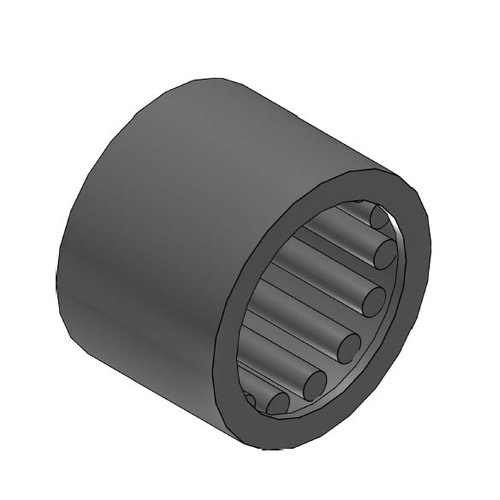

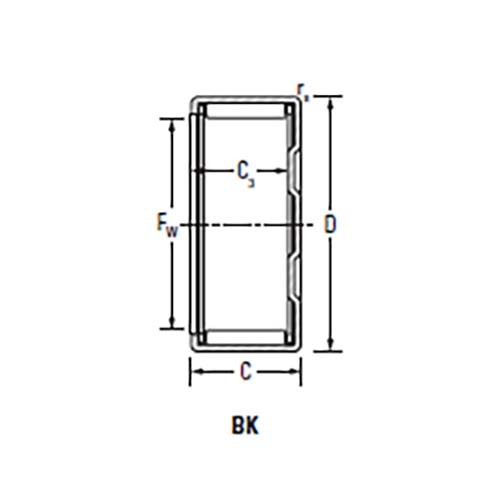

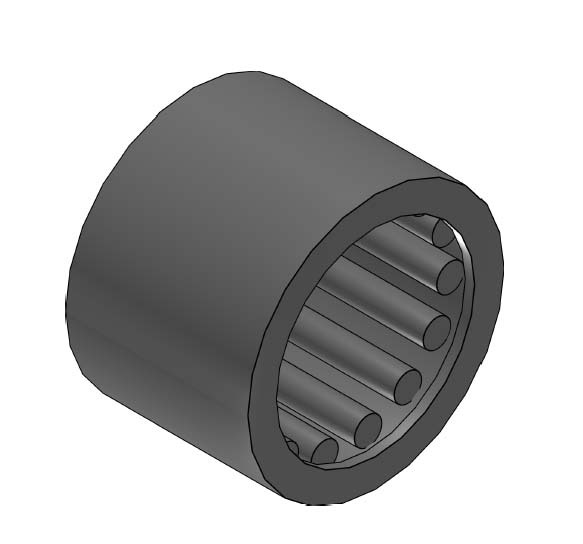

Shell Type Needle Roller Bearing Closed End (BK)

About Drawn Cup Needle Roller Bearing

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
Drawn cup bearings are easily installed with a press fit in the housing.

Features

Benefits

Specifications

AIMS SKU A0157099

Brand Koyo

Model Number BK1010/KOYO

Outside Diameter 14 mm

Width (mm) 10

Shaft Diameter (mm) 10

Inside Diameter (mm) 10

Outside Diameter (mm) 14

Width 10 mm

Bore Diameter 10 mm

r min. 0.4

Fatigue Load Limit Cu (kN) 0.84

Basic Load Rating Radial (kn) Cr 4.78

Basic Load Rating Radial (kn) C0r 5.51

Limiting Speed Grease Lub. 19000

Limiting Speed Grease Oil Lub. 29000

C3 Min. 8.4
