*** JTEKT (Formerly Koyo Brand) ***

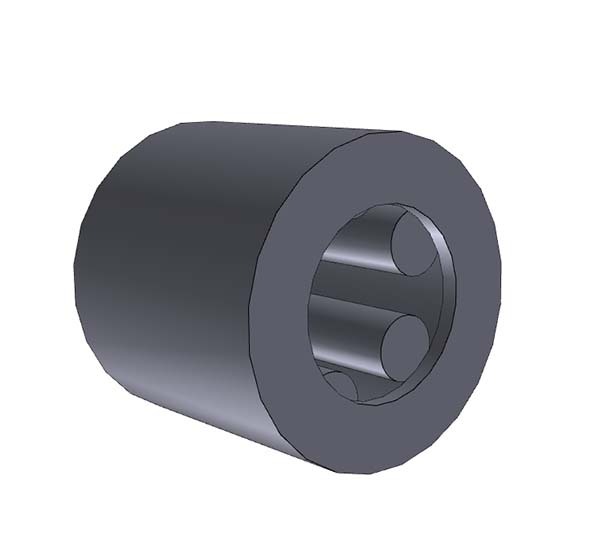

Shell Type Needle Roller Bearing (HK)

  • HK, drawn cup bearing, caged, open ends.

About Drawn Cup Needle Roller Bearing

  • Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
  • The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
  • Drawn cup bearings are easily installed with a press fit in the housing.

Features

  • Available in two basic designs: full complement and caged.

Benefits

  • Full complement bearings handle high radial load-carrying capability.
  • Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

  • AIMS SKU A0157171
  • Brand Koyo
  • Model Number HK0306/KOYO
  • Outside Diameter 6.5 mm
  • Width (mm) 6
  • Shaft Diameter (mm) 3
  • Inside Diameter (mm) 3
  • Outside Diameter (mm) 6.5
  • Width 6 mm
  • Bore Diameter 3 mm
  • r min. 0.3
  • Fatigue Load Limit Cu (kN) 0.13
  • Basic Load Rating Radial (kn) Cr 1.6
  • Basic Load Rating Radial (kn) C0r 1.14
  • Limiting Speed Grease Lub. 30000
  • Limiting Speed Grease Oil Lub. 46000
  • Type Needle Roller Bearing
SKU: A0157171

Koyo/JTEKT Shell Type Needle Roller Bearing 3 x 6.5 x 6mm

Shell Type Needle Roller Bearing (HK)

$10.00
