Description

*** JTEKT (Formerly Koyo Brand) ***

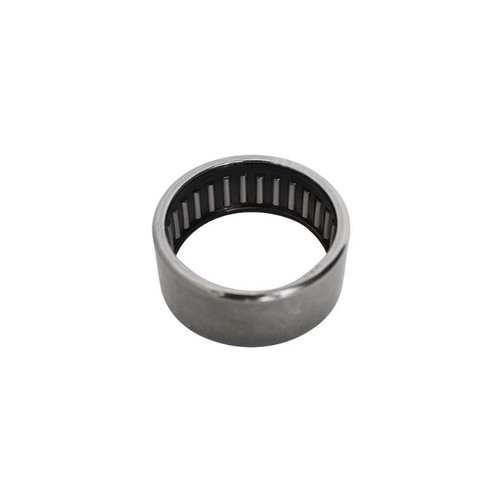

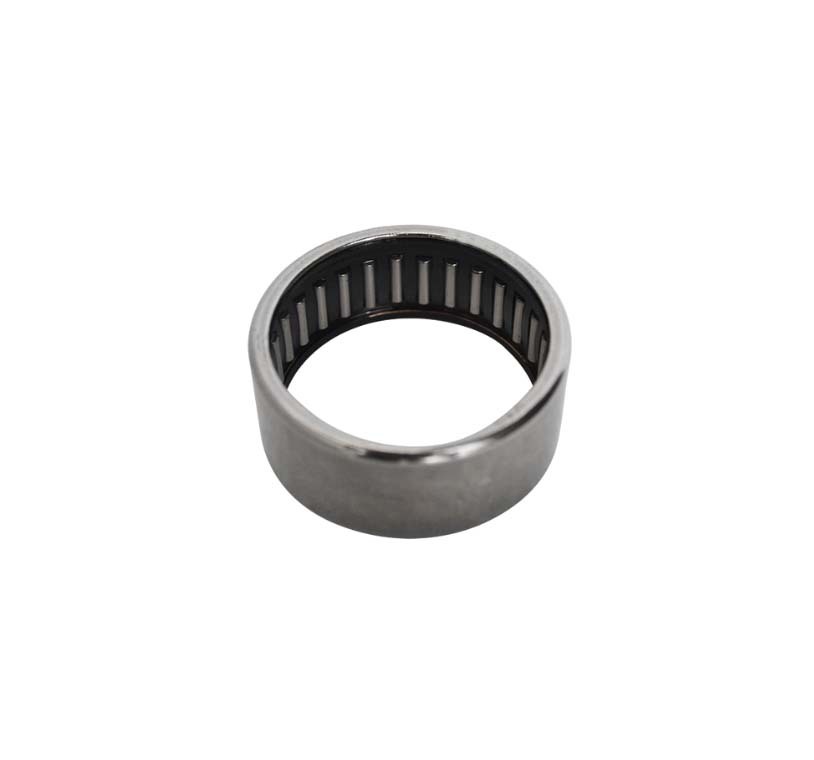

Shell Type Needle Roller Bearing RS - Lip Contact Seal (HK)

HK, drawn cup bearing, caged, open ends.
RS, lip contact seal on one side of the bearing.

About Drawn Cup Needle Roller Bearing

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
Drawn cup bearings are easily installed with a press fit in the housing.

Features

Available in two basic designs: full complement and caged.

Benefits

Full complement bearings handle high radial load-carrying capability.
Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

AIMS SKU A0157141

Brand Koyo

Model Number HK0810-RS/KOYO

Outside Diameter 10

Width (mm) 12

C (+0/+0.000-0.3/-0.012) in 0.4724

C3 Min (in) 0.394

Speed Rating Grease Min-1 2.73

Load Rating Static C0 (lbf) 650

Load Rating Dynamic C (lbf) 0.016

Fw (in) 0.315

Load Rating Static C0 (kn) 2.9

Load Rating Dynamic C (kn) 0.4

rs min (mm) 8 mm

D (in) 0.315

Bore Diameter 10 mm

Shaft Diameter (in) 0.004

Width 12 mm

Outside Diameter (mm) 8

Inside Diameter (mm) 8

Outer Diameter (mm) 610

Type Needle Roller Bearing
