Description

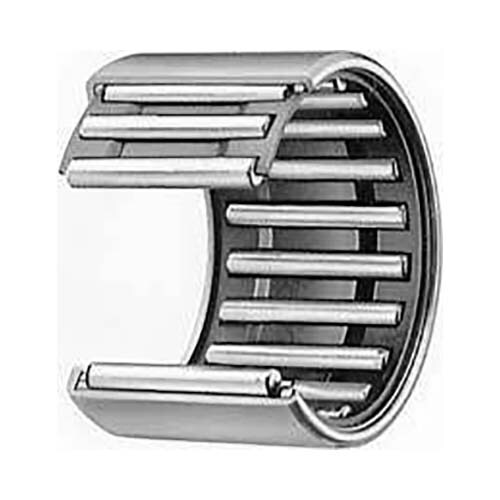

Shell Type Needle Roller Heavy Duty - Inch Series (BHA)

  • Inch series.
  • Heavy duty.
  • Standard cage.

About Shell Type Needle Roller Bearing

  • Shell Type Needle Roller Bearings are lightweight with the lowest sectional height among needle roller bearings with outer ring, because they employ a shell type outer ring made from a thin special-steel plate that is accurately drawn, carburized, and quenched.
  • Since these bearings are press-fitted into the housing, no axial positioning fixtures are required.
  • They are ideal for use in mass-produced articles that require economy.

About Structure and Features

  • Shell Type Needle Roller Bearings are lightweight bearings with large load ratings.
  • They employ a shell-type outer ring made from a thin special-steel plate that is accurately drawn, carburized, and quenched, thus providing the lowest sectional height among the needle roller bearings.
  • There are two types of bearings available in this series; the caged type and the full complement type.
  • The appropriate type can be selected according to the operating conditions.
  • The caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings.
  • It is useful for applications at high-speed rotation.
  • The full complement type needle roller bearing, on the other hand, is suitable for heavy-load applications at low-speed rotation.
  • Since these bearings are press-fitted into the housing, no fixtures for axial positioning are needed.
  • They are ideal for use in mass-produced articles that require the economy and have a wide variety of applications.

Specifications

  • AIMS SKU A0155940
  • Brand IKO
  • Model Number BHA1010/IKO
  • Shaft Diameter (mm) 15.875

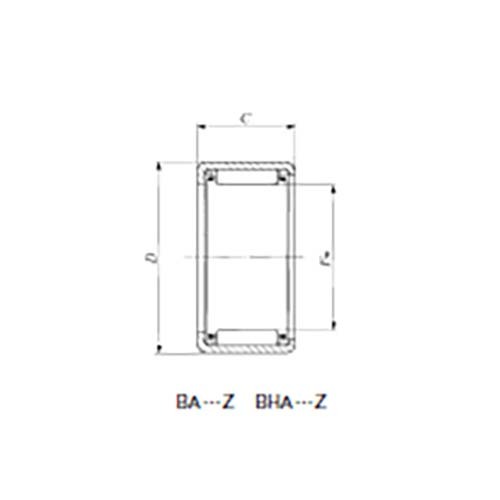

  • C (mm) 15.875
  • D (mm) 22.225
  • Outside Diameter (in) 7/8
  • Shaft Diameter (in) 5/8
  • Basic Dynamic Load Rating C (N) 10200
  • Width (in) 5/8
  • Basic Static Load Rating C (N) 13800
  • t2 Max. 1.3
  • Shaft Diameter h6 Max. 15.875
  • Shaft Diameter h6 Min. 15.864
  • Housing Bore Diameter J7 Max. 22.237
  • Housing Bore Diameter J7 Min. 22.216
  • Allowable Rotational Speed (1) (rpm) 25000
  • Type Needle Roller Bearing
SKU: A0155940

IKO Shell Type Needle Roller Bearing HD w/ Oil Hole 5/8 x 7/8 x 5/8"

Shell Type Needle Roller Heavy Duty - Inch Series (BHA)
