Description

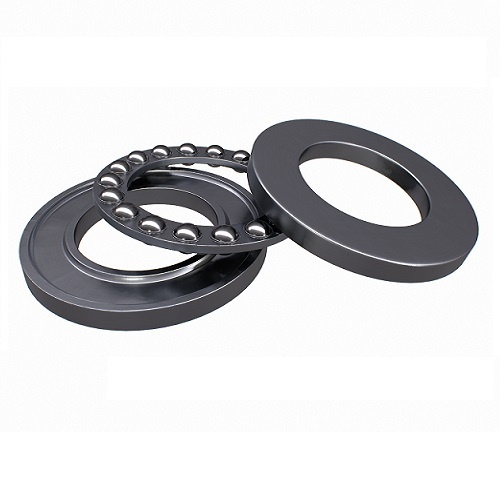

Thrust Ball Bearings

  • Three-part Assembly.
  • Medium duty bearing.
  • Thrust Bearing is designed for unidirectional axial loads and not suitable for radial loads.
  • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Specifications

  • AIMS SKU A0106183
  • Brand NACHI
  • Model Number 0-5/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 15.875 x 35.719 x 15.875
  • Basic Dynamic Load Rating (n) 19400
  • Basic Static Load (N) 28300
  • Grease Lubrication 4100
  • Oil Lubrication 6200
  • Range Dimension (mm) 16.272 x 34.925
  • Abutment And Fillet Dimension (mm) 27.8 x 23.8
  • Ra (max) 0.8
  • Mass (kg) 0.086
  • Type Spherical Roller Thrust Bearings
  • Series Inch
SKU: A0106183

NACHI 0-5 Thrust Ball Bearings Inch Series O 15.875 x 35.719 x 15.875mm

Single-direction Thrust Ball Bearings Inch Series O

$16.17
