Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105406
  • Brand NACHI
  • Model Number 7002CYDU/GLP4/NACHI

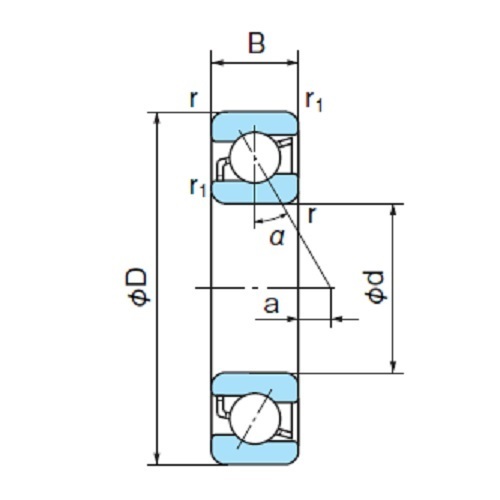

  • Bore Diameter x Outer Diameter x Width (mm) 15 x 32 x 9
  • R (min) 0.3
  • Basic Dynamic Load Rating (n) 6650
  • Basic Static Load (N) 3700
  • Limiting Speed (rpm) Grease Lubrication 34000
  • Limiting Speed (rpm) Oil Lubrication 47000
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 7000 - 7200
SKU: A0105406

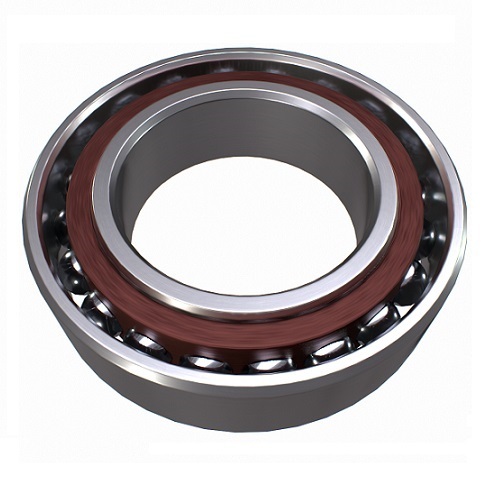

NACHI 7002CYDU Angular Contact Ball Bearings 7000-7200 Series 15 x 32 x 9mm

Angular Contact Ball Bearings 7000-7200 Series

$238.01
