Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105428
  • Brand NACHI
  • Model Number 7201B/NACHI

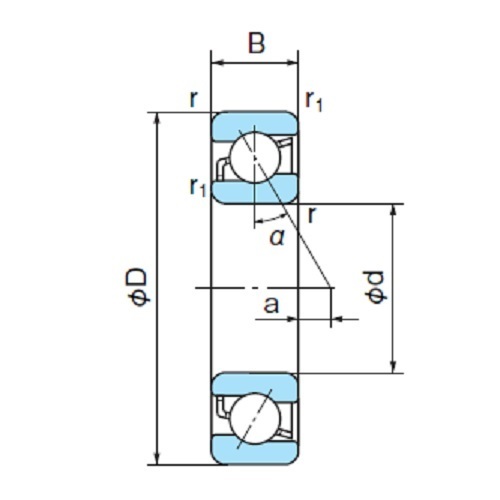

  • Bore Diameter x Outer Diameter x Width (mm) 12 x 32 x 10mm
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 7200
  • Basic Static Load (N) 3800
  • Limiting Speed (rpm) Oil Lubrication 24000

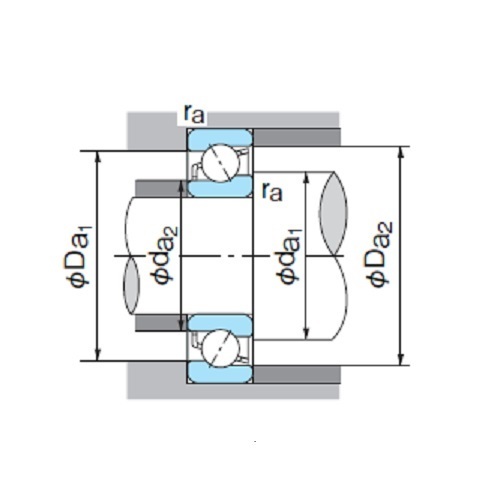

  • Abutment And Fillet Dimension Da (min) Mm 17
  • Abutment And Fillet Dimension Da (max) Mm 27
  • Abutment And Fillet Dimension Ra (max) Mm 0.6
  • Width (b) mm 10
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 7000 - 7300
SKU: A0105428

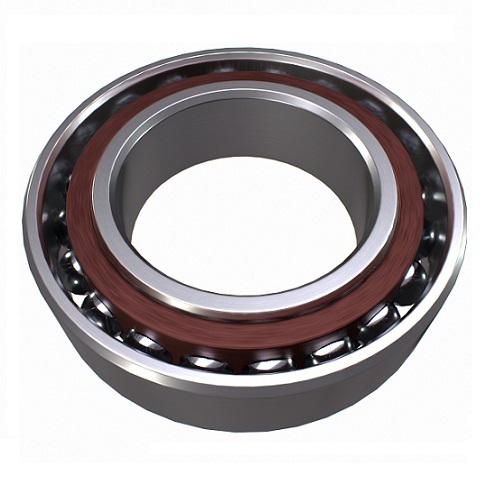

NACHI 7201B Angular Contact Ball Bearings 7200-7300 Series 12 x 32 x 10mm

Angular Contact Ball Bearings 7200-7300 Series

$15.75
