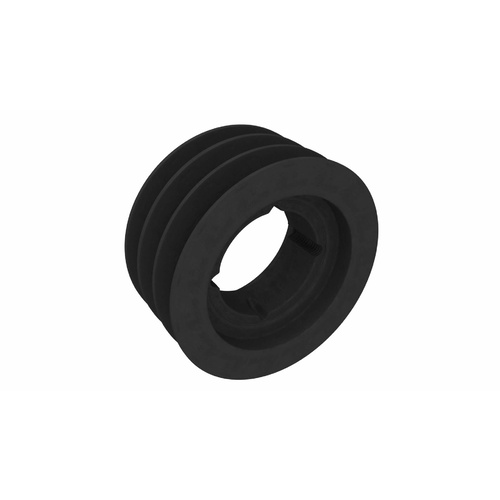

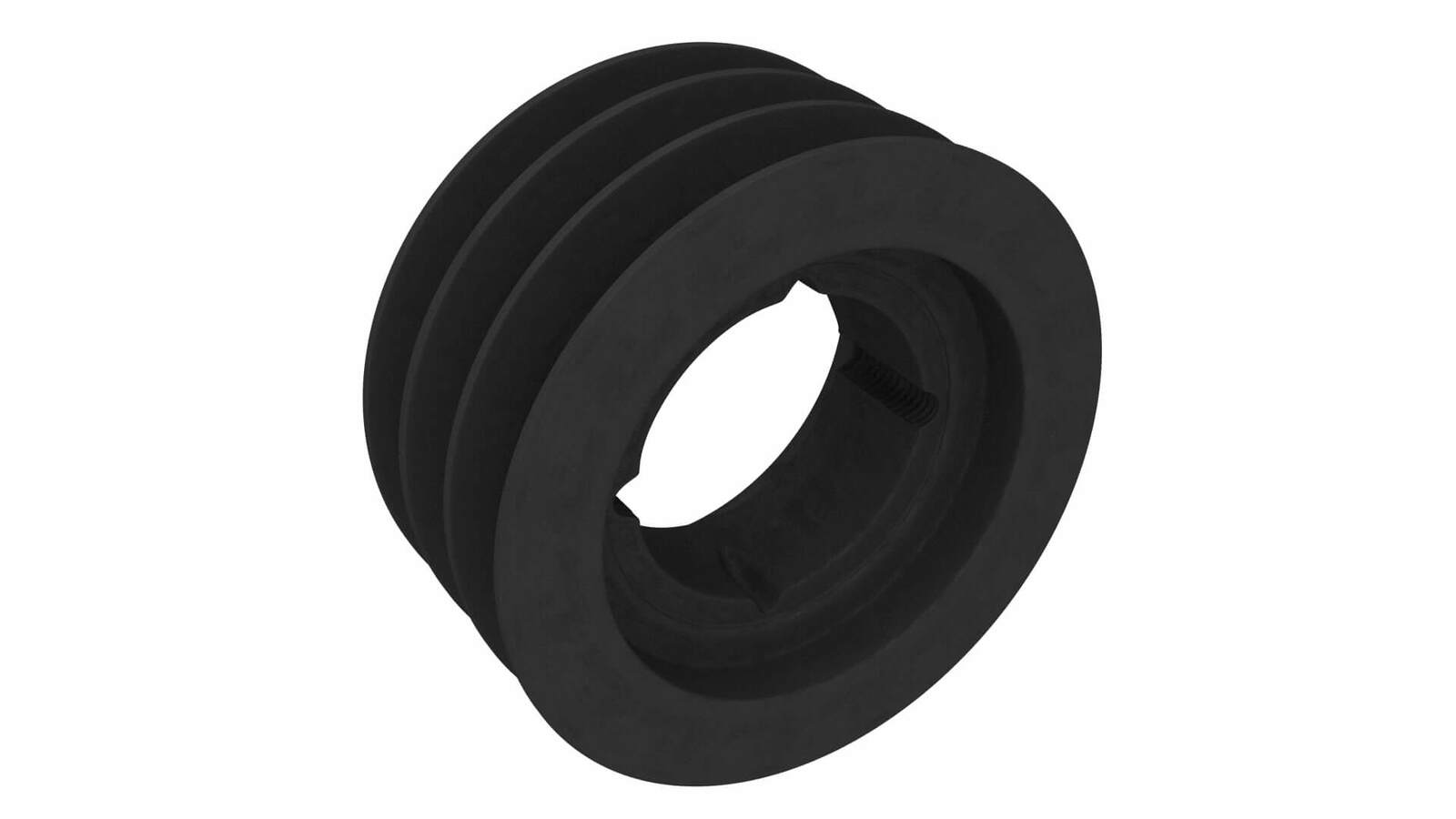

SPB Taper Lock V Pulley (2517) 224mm, 3 Groove Cast Iron SPB224-3 - Finer Power Transmissions

Description

**Bush is not included and needs to be purchased separately.**

Features of Cast Iron Taper Lock V-Pulleys

Suitable for SPB & B Section Belts
Choose from 1, 2, 3, 4, 5, 6, 8 or 10 Grooves
Wide range of sizes available
Quality V-belt pulleys
Constructed from cast iron
Taper locked to accommodate a range of shaft sizes
Each pulley design has undergone stringent balancing tests to ensure optimal efficiency.
Finished in black coating which acts as a primer to help protect the pulleys from environmental factors.

Specifications

AIMS SKU A0060250

PC Diameter (mm) 224

Number of Grooves 3

Suits Taper Lock Series 2517

Max Diameter Taper Lock Bush (mm) 60

Type Taper Lock V Pulley
System of Measurement Metric
Material Cast Iron
Section B,SPB
