Description

Spherical Roller Bearings

  • Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
  • Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
  • Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

  • AIMS SKU A0105058
  • Brand NACHI
  • Model Number 22328EW33C3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 140 x 300 x 102
  • R (min) 4
  • Basic Dynamic Load Rating (n) 1540000
  • Basic Static Load (N) 1520000
  • Limiting Speed (rpm) Grease Lubrication 1600
  • Limiting Speed (rpm) Oil Lubrication 2200

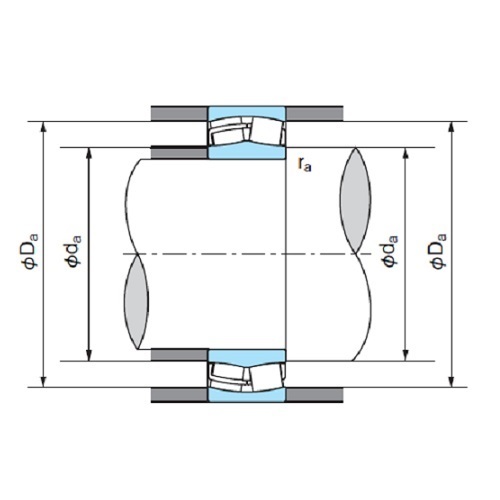

  • Abutment And Fillet Dimension Da (min) Mm 158
  • Abutment And Fillet Dimension Da (max) Mm 282
  • Abutment And Fillet Dimension Ra (max) Mm 3
  • Type Spherical Roller Bearings
  • System of Measurement Metric
  • Series 22300-24100
SKU: A0105058 On Sale

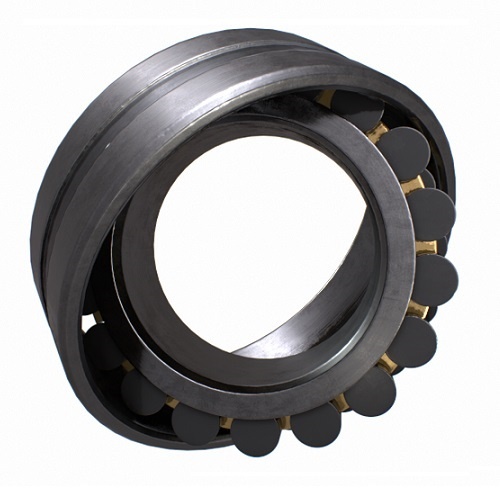

NACHI 22328EW33C3 Spherical Roller Bearings 22300 Series 140 x 300 x 102mm

Spherical Roller Bearings 22300 Series

$1,200.98
$1,501.23
