Description

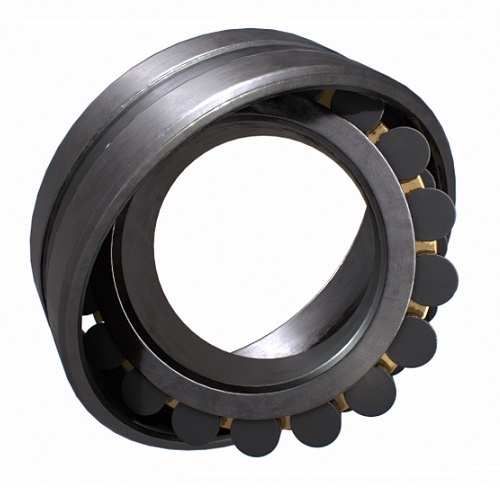

Spherical Roller Bearings

  • Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
  • Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
  • Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

  • AIMS SKU A0105060
  • Brand NACHI
  • Model Number 22205EXQW33C3/NACHI

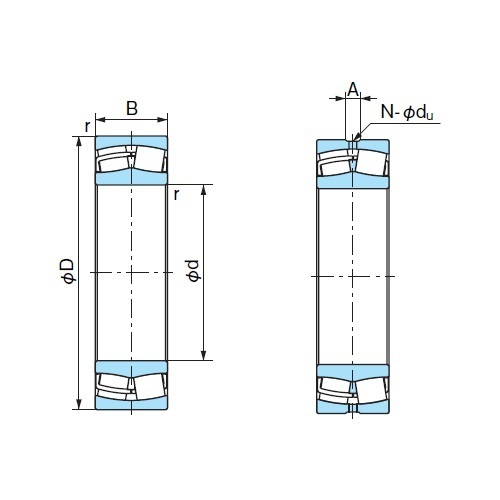

  • Bore Diameter x Outer Diameter x Width (mm) 25 x 52 x 18
  • R (min) 1
  • Basic Dynamic Load Rating (n) 63000
  • Basic Static Load (N) 48000
  • Limiting Speed (rpm) Grease Lubrication 10500
  • Limiting Speed (rpm) Oil Lubrication 13000

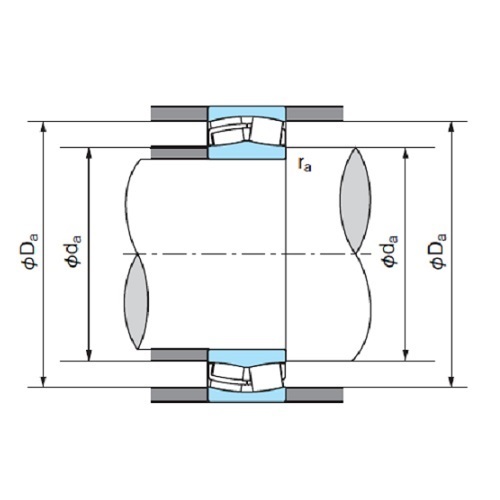

  • Abutment And Fillet Dimension Da (min) Mm 30.5
  • Abutment And Fillet Dimension Da (max) Mm 46.5
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Type Spherical Roller Bearings
  • System of Measurement Metric
  • Series 21300-23200
SKU: A0105060

NACHI 22205EXQW33C3 Spherical Roller Bearings 22200 Series 25 x 52 x 18mm

Spherical Roller Bearings 22200 Series

$91.52
