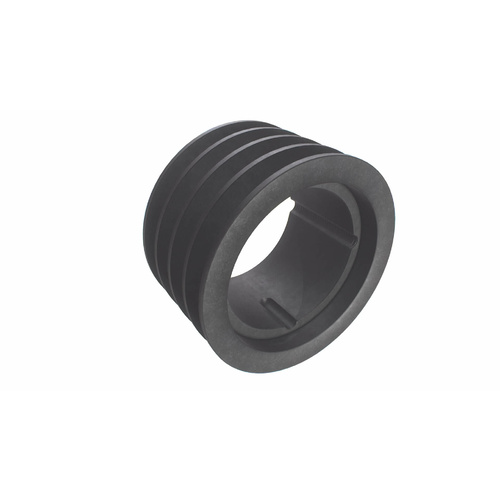

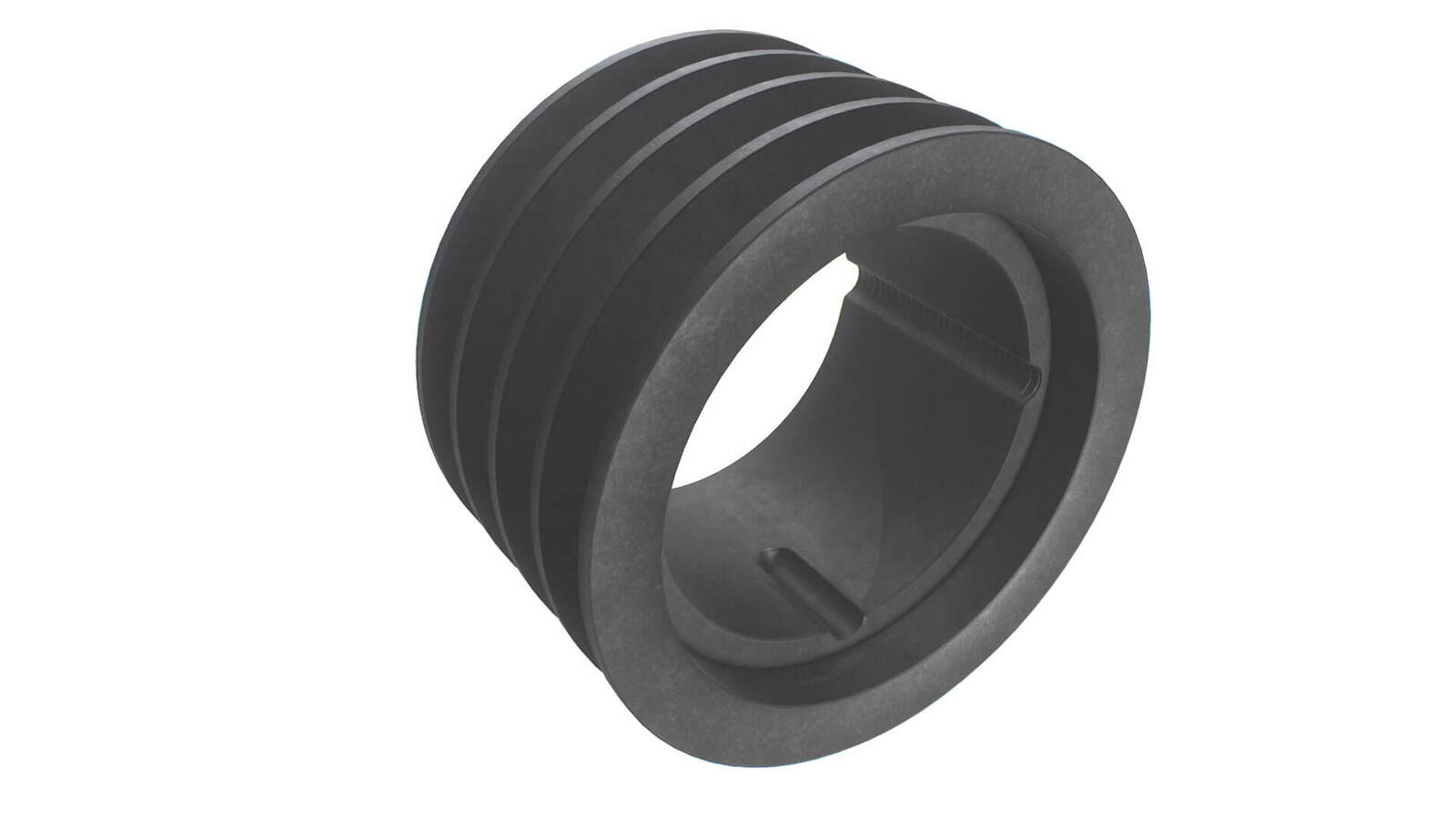

SPZ Taper Lock V Pulley (1610) 90mm, 4 Groove Cast Iron SPZ90-4 - Finer Power Transmissions

Description

**Bush is not included and needs to be purchased separately.**

Features of Cast Iron Taper Lock V-Pulleys

Suitable for SPZ, Z, M & O Section Belts
Choose from 1, 2, 3, or 4 Grooves
Wide range of sizes available
Quality V-belt pulleys
Constructed from cast iron
Taper locked to accommodate a range of shaft sizes
Each pulley design has undergone stringent balancing tests to ensure optimal efficiency.
Finished in black coating which acts as a primer to help protect the pulleys from environmental factors.

Specifications

AIMS SKU A0060578

PC Diameter (mm) 90

Number of Grooves 4

Suits Taper Lock Series 1610

Max Diameter Taper Lock Bush (mm) 42

Type Taper Lock V Pulley
System of Measurement Metric
Material Cast Iron
Section O,Z,SPZ,M
