Description

***Lead time is 12 Weeks from receipt of the order. Contact AIMS for further assistance.***

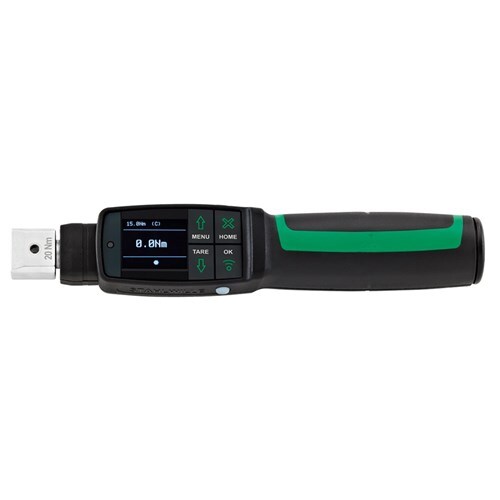

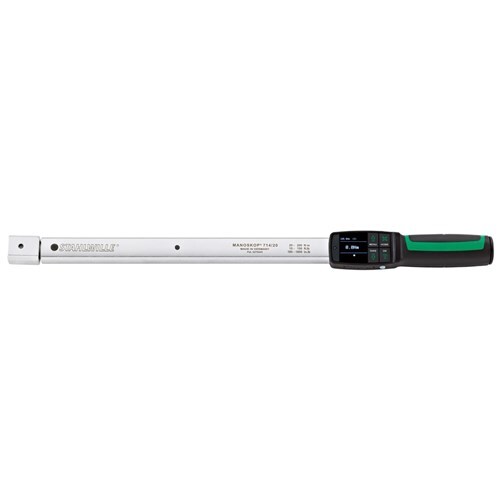

MANOSKOP 714 - Indicating and Cut-out Electromechanical Torque and Angle-controlled Wrench

4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
High-definition colour display with additional side-mounted indicator lamps
Freely configurable menu structure
Optional: Li-ion battery No 7195-2 and charger No 7160
3 function modes:
- cut-out
- peak (indicating mode with peak value)
- track (indicating mode with current value)
Micro USB 2.0 interface
Bayonet connection for battery compartment
QuickRelease safety lock change system for insert tools
Angle-controlled measurement without a reference arm
Data storage (< 2500 tightening jobs) as many as 200 joints can be programmed in up to 25 preset sequences.
Different tolerance limits can be set for each joint
Acoustic and visual assessment of the joint
Rapid, accurate setting via keypad
The automatic keypad lock prevents inadvertent changes
Overload protection by means of acoustic and visual signals and a fail-safe system (clockwise
Automatic notification of the next calibration date, either by the number of joints or the time interval
Fully automated calibrating and adjusting using the perfect control calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
Units of measure: N m, ft.lb, in.lb.
Tightening torque is automatically corrected if a deviating extension is entered
Immediately reusable after release
Clockwise and anticlockwise tightening – it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
Tactile, visual and acoustic trigger signal.
Torque and angle are simultaneously visible
All readings are independent of the point of application of force (with sizes 1, 2 and 4)
Safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
2 certificates (torque, angle)
In sturdy plastic case (size 40 in steel case)
Design patent, other patents applied for
Supplied with Sensomaster software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
Display resolution, angle 0.1°
Display deviation value, angle ±1%, ±1 digit
Display resolution, torque (< 40 N m: 0.01 Nm; > 40 N m: 0.1 Nm
Display deviation value, angle ±2%, ±1 digit
