Specifications
- AIMS SKU A0156913
- Brand FYH
- Model Number SSUC201-8/FYH

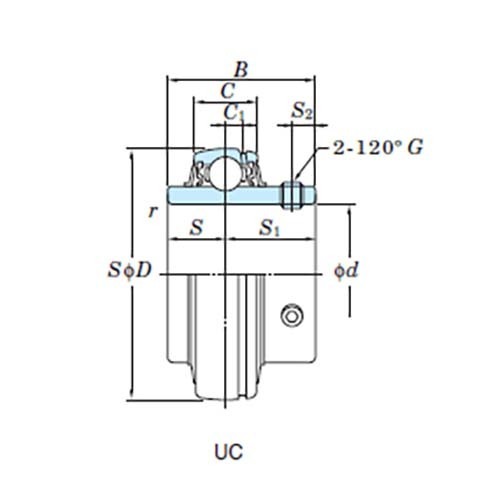

- C1 (in) 0.157
- Set Screw Brg. Bore G (in) 1/4-28UNF
- Set Screw Brg. Bore G (mm) ?
- S2 (in) 0.197
- S1 (in) 0.72
- S (in) 0.5
- Basic Load Rating C0r (kn) 6.65
- Basic Load Rating Cr (kn) 12.8
- R Min (in) 0.024
- R Min (mm) 0.6
- Factor f0 13.2
- C (in) 0.63
- C (mm) 16
- B (in) 1.22
- D (in) 1.85
- Bore Diameter 1/2 in
- Shaft Diameter (in) 1/2
- D (mm) 47
- b (mm) 31
- S2 (mm) 5
- S1 (mm) 18.3
- S (mm) 12.7
- C1 (mm) 4
- Type Ball Bearing
- System of Measurement Imperial
- Material Stainless Steel
SKU: A0156913

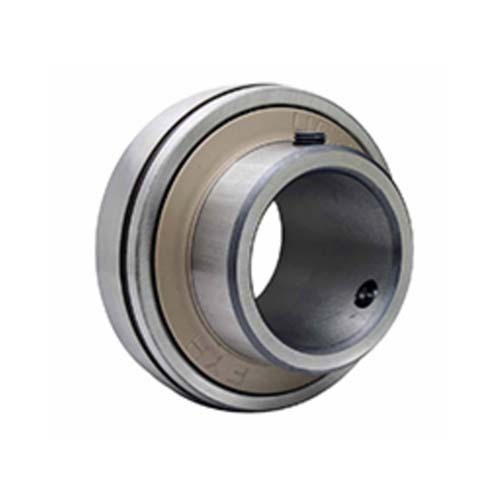

FYH Stainless Steel Wide Inner Ring Bearing w/ Grub Screw (UC201-8S6) 1/2"
Stainless Steel Wide Inner Ring Bearing w/ Grub Screw
$68.62
