Specifications
- AIMS SKU A0156925
- Brand FYH
- Model Number SSUC201/FYH

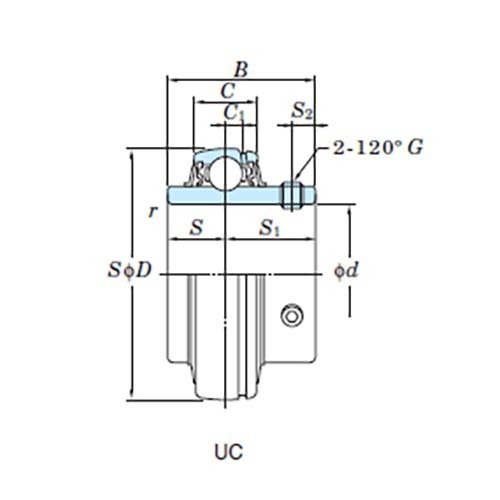

- C1 (in) 0.157
- Set Screw Brg. Bore G (in) ?
- Set Screw Brg. Bore G (mm) M6 x 0.75
- S2 (in) 0.197
- S1 (in) 0.72
- S (in) 0.5
- Basic Load Rating C0r (kn) 6.65
- Basic Load Rating Cr (kn) 12.8
- R Min (in) 0.024
- R Min (mm) 0.6
- Factor f0 13.2
- C (in) 0.63
- Shaft Diameter (mm) 12
- B (in) 1.22
- D (in) 1.85
- Bore Diameter 12 mm
- D (mm) 47
- b (mm) 31
- S2 (mm) 5
- S1 (mm) 18.3
- S (mm) 12.7
- C1 (mm) 4
- C (mm) 16
- Type Ball Bearing
- System of Measurement Metric
- Material Stainless Steel
SKU: A0156925

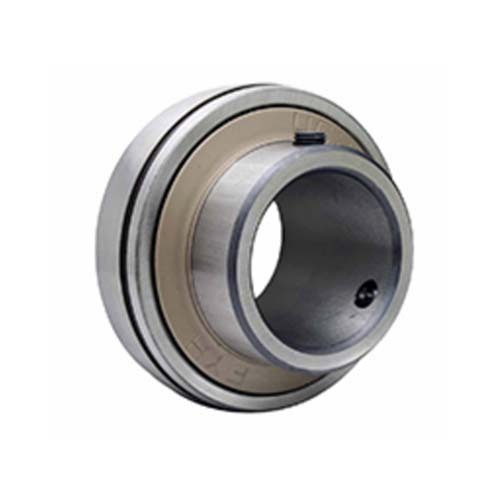

FYH Stainless Steel Wide Inner Ring Bearing w/ Grub Screw (UC201S6) 12mm
Stainless Steel Wide Inner Ring Bearing w/ Grub Screw
$68.62
