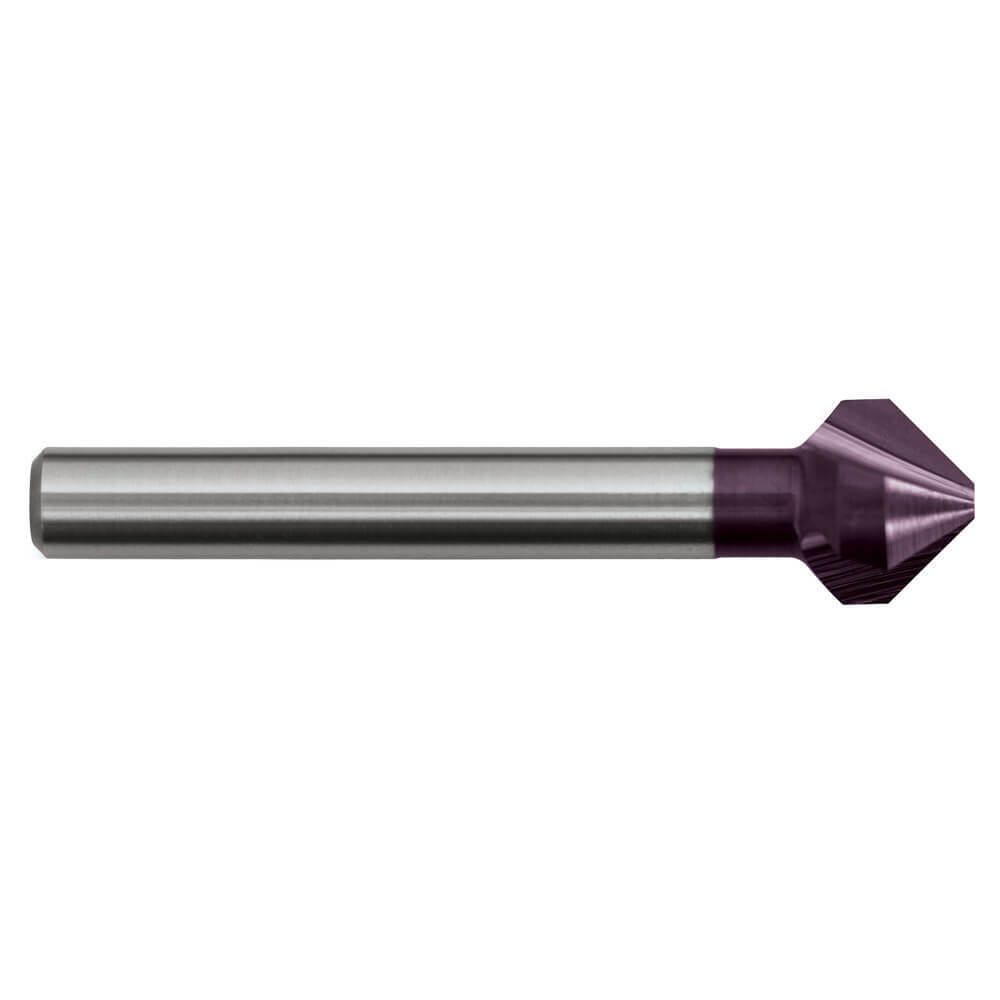

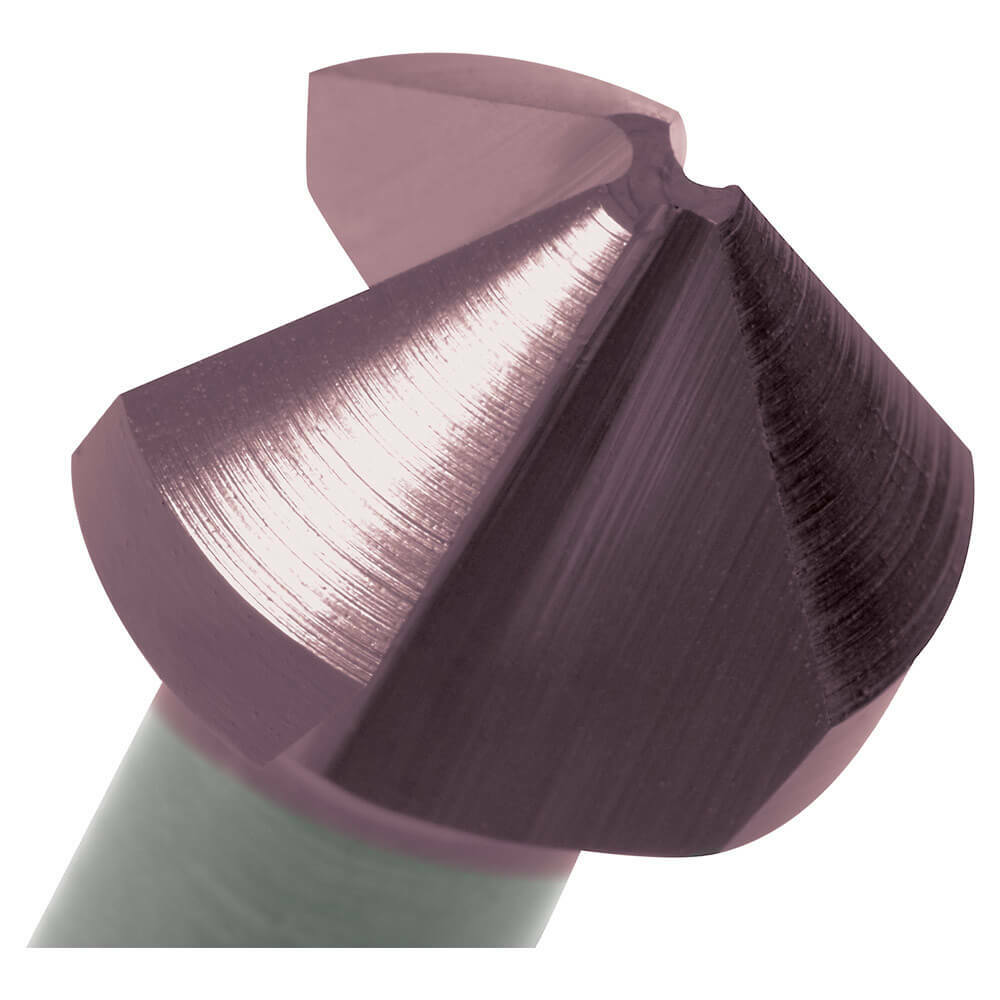

Sutton C1080430 4.3 mm 90° Countersink Bit Three Flute DIN - Cobalt TiAlN

Description

Descriptions

Three Flute Countersink 90°, DIN 335, UNI
Countersinking / Counterboring screw holes
For Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516
For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047
Chamfering of tapping holes

Features

For use in machine applications
Type N - For non-ferrous, Type UNI - For difficult to machine materials

Specifications

Designation: UNI
Material: High Speed Steel-Cobalt
Finish: TiAIN
Shank Tolerance: h9
Standard: DIN 335
Point Type: 90°

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable- 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 – 110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)- 100 HB
Optimal for Cast Iron – Chilled – 400 HB

Specifications

AIMS SKU A0002692

Brand Sutton Tools

Model Number C1080430

Barcode Number 9311963439198

Countersink Diameter (mm) 4.3

Overall Length (mm) 40

Shank (mm) 4

Screw Head M2

Group Code C108
Barcode Sutton-C108
Type Three Flute Countersink
System of Measurement DIN 335
Material High Speed Steel Cobalt (HSS Co5%)
Finish Titanium Aluminium Nitride (TiAIN)
Purpose Countersinking,Counterboring,Deburring
Point Angle 90°
Shank Tolerance h9
