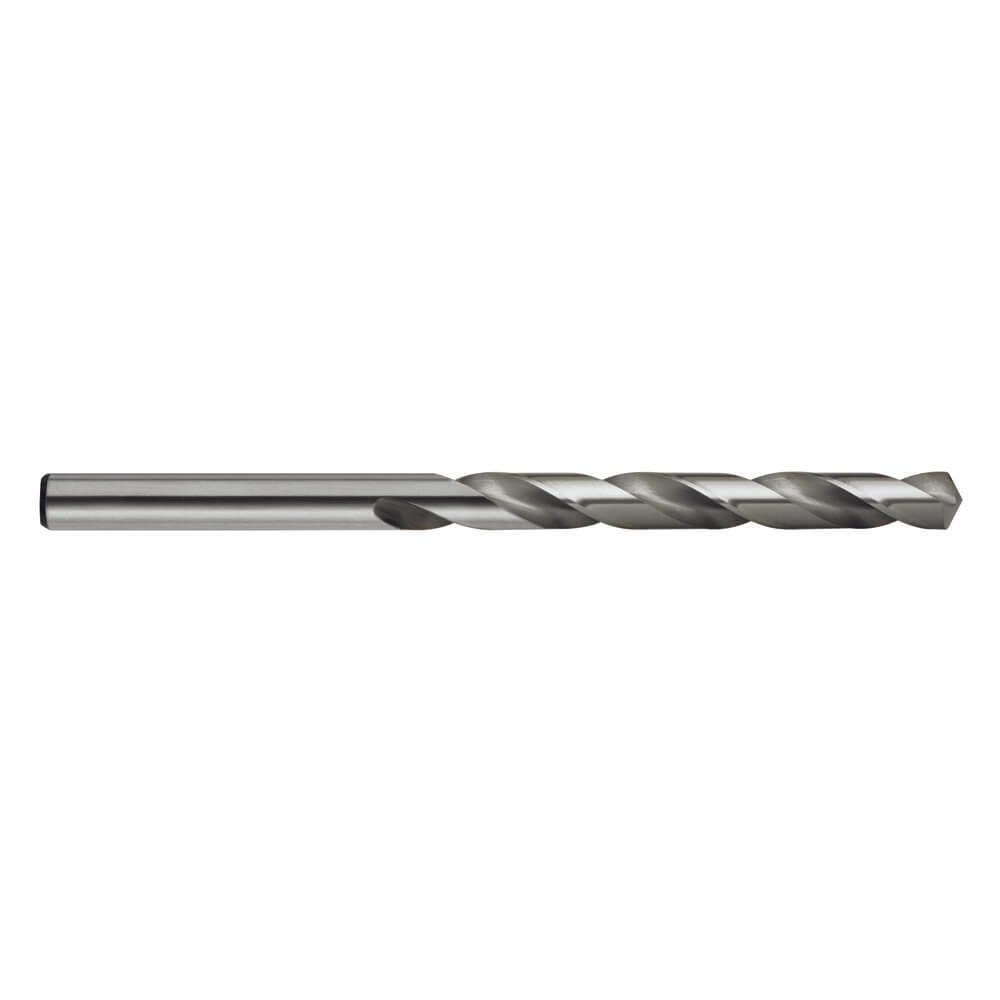

Sutton D1010034 0.34mm #80 Jobber Drill Bit Silver Bullet HSS - Pack of 10

Description

Description

Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminum, brass, wood & plastics

Features

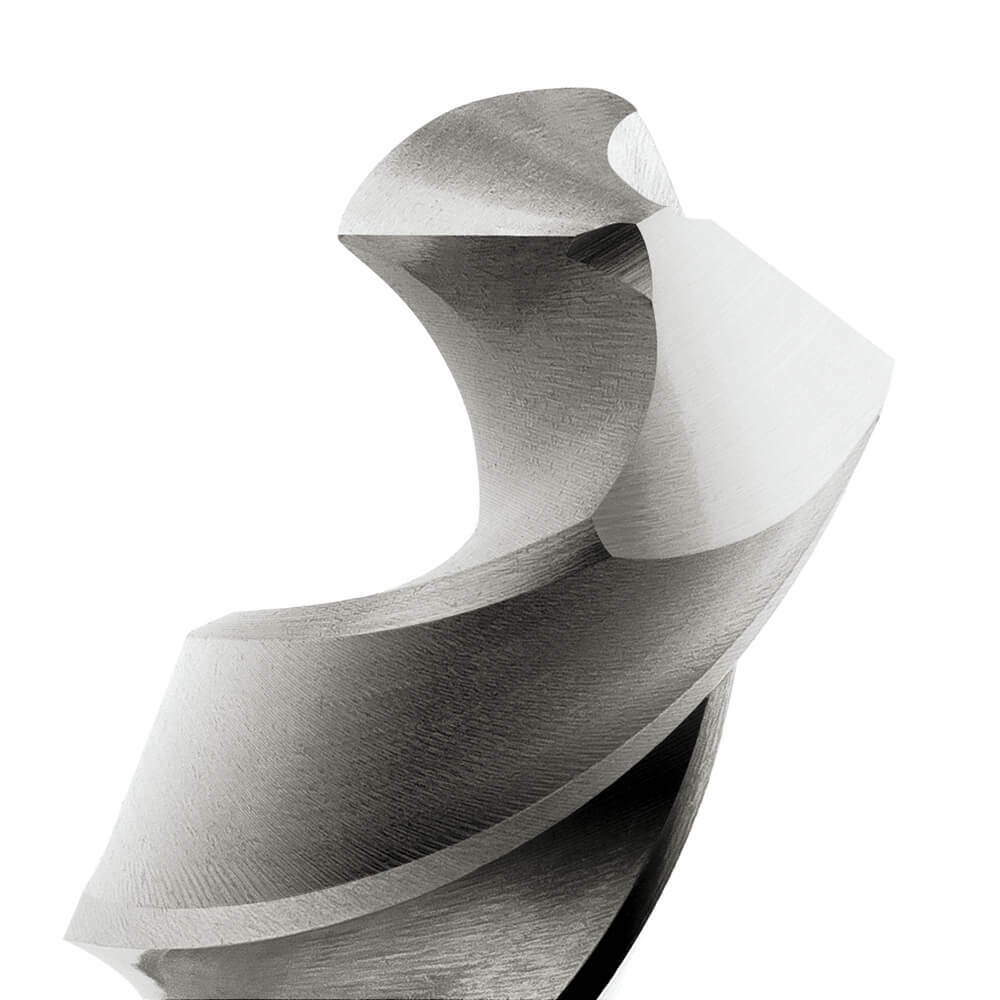

118° standard point for general purpose applications
Precision engineered parallel shank for accurate hole size
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N
Material: High Speed Steel
Finish: Bright
Maximum Cut Depth: 5XD
Shank Form: A
Helix Angle: R30
X: als
Point Tolerance: h8
Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: ANSI B94-11/DIN 338

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB

Specifications

AIMS SKU A0002761

Brand Sutton Tools

Model Number D1010034

Barcode Number 9311963013619

Thread Diameter (Wire Gauge) #80

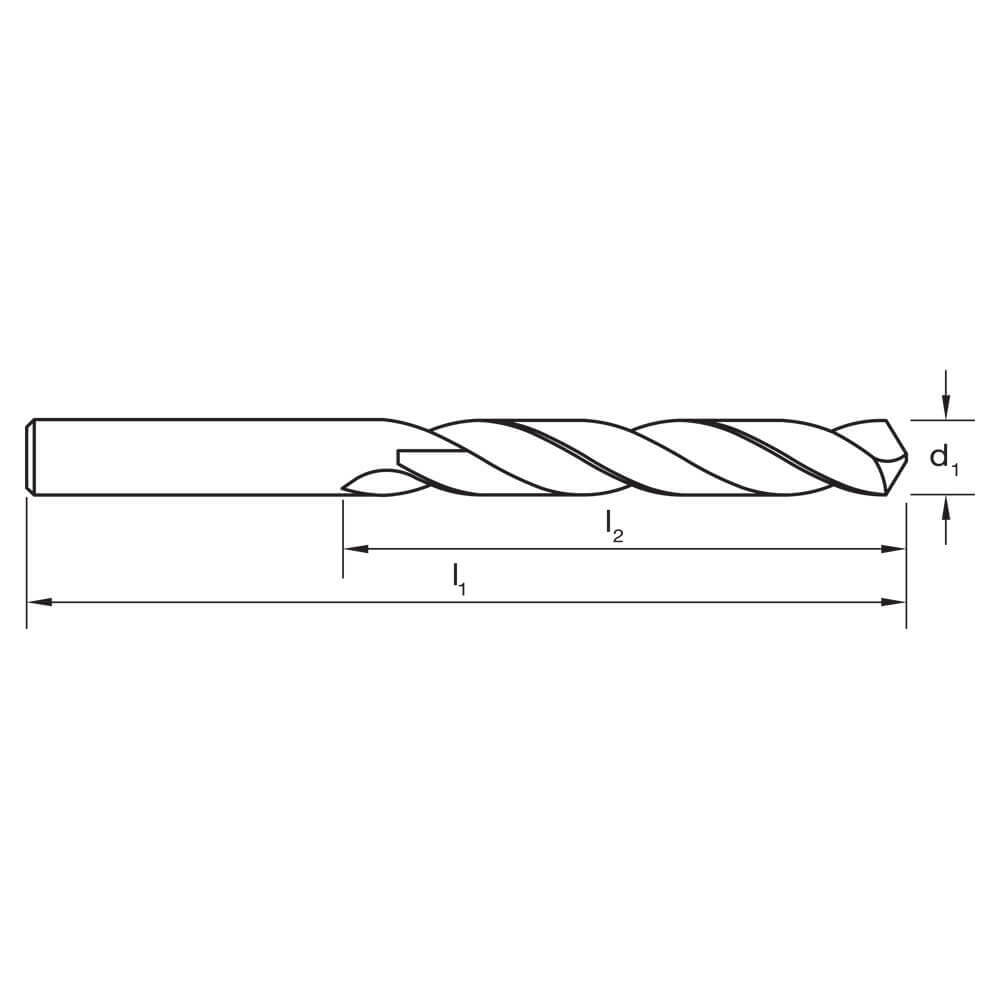

Overall Length (mm) 19

Flute Length (mm) 3

Group Code D101
Type Jobber Drill Bit
System of Measurement Imperial (Wire Gauge),ANSI B94-11,DIN 338
Material High Speed Steel (HSS)
Finish Bright
Helix Angle R30
Shank Form A
Point Angle 118
Point Form A
Maximum Cut Depth 5XD
Point Tolerance h8
