Descriptions

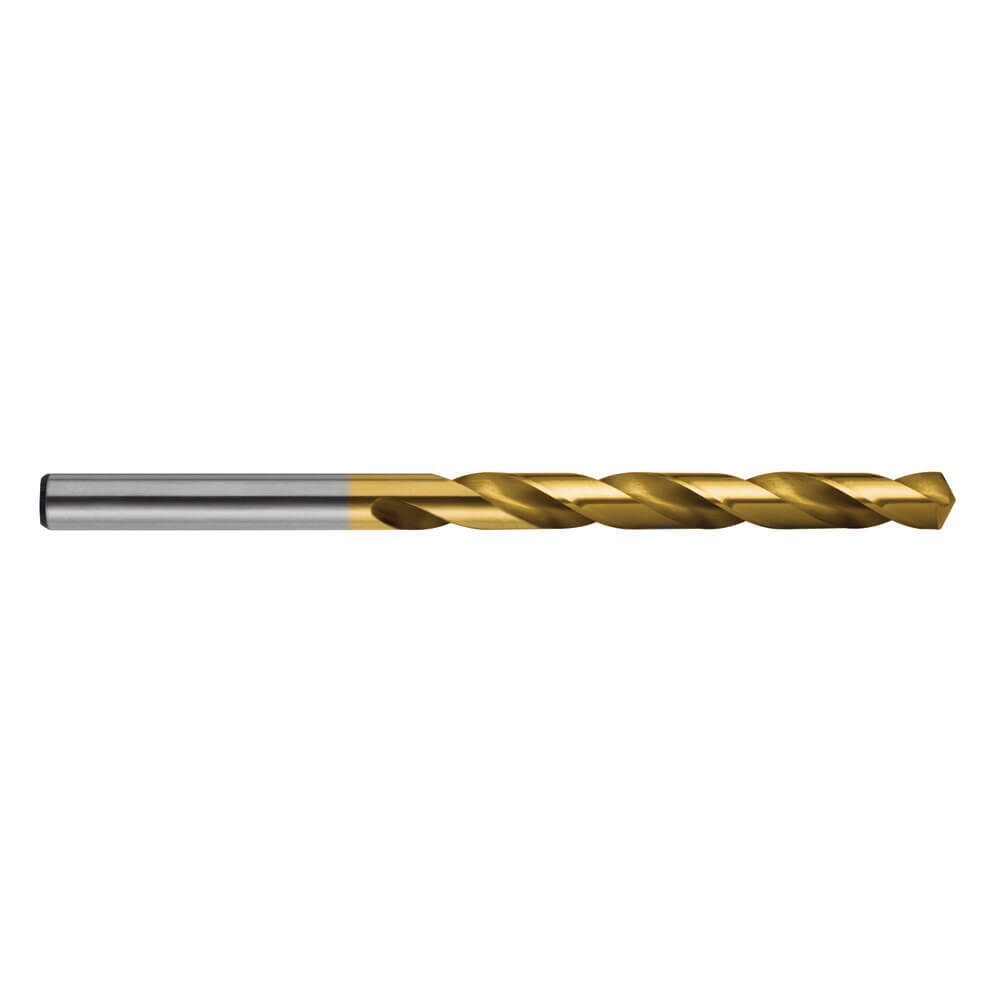

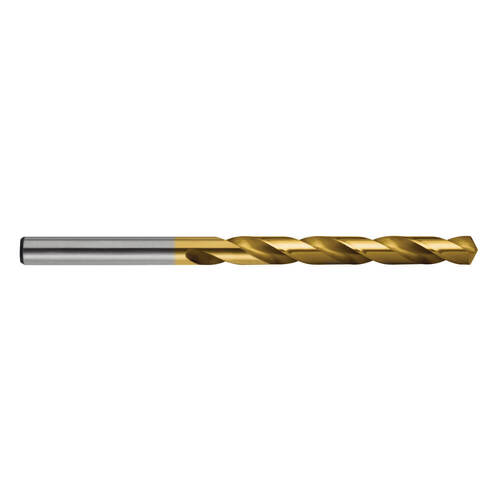

• Sutton Tools TiNite® jobber drills are for high performance drilling
• Lasts up to 6 times longer than standard HSS drill bits
• For drilling metal & tougher alloy steels such as steel, stainless steel, copper, brass, aluminum & cast iron

Features

• Cuts faster at higher speeds

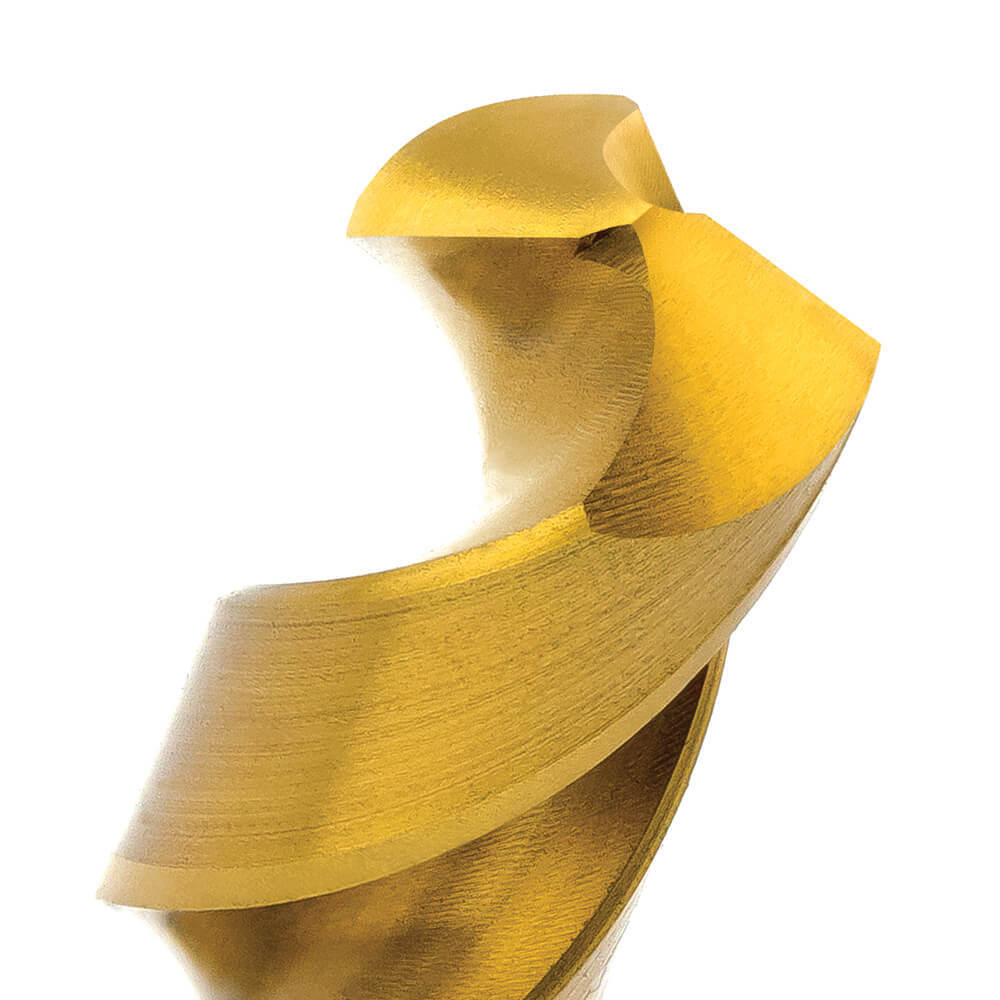

• 118° web thinned point reduces the amount of thrust required
• Precision ground flute offers high accuracy drilling and fast chip removal
• Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
• TiN coating provides 3 to 6 times longer tool life than uncoated tools and is suitable for general purpose use in a wide range of applications

Specifications

• Designation: N
• Material: High Speed Steel
• Finish: TiN
• Maximum Cut Depth: 5XD
• Shank Form: A
• Helix Angle: R30
• X: als
• Point Tolerance: h8
• Point Angle: 118°
• Point Form: Form A
• Cutting Edges: ul
• Standard: DIN 338

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
• Optimal for Steel - High alloy, cast & tool- 200 HB
• Optimal for Steel - High alloy, cast & tool- 325 HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
• Optimal for Steel - Corrosion resistant & cast - Martensitic- 240 HB
• Optimal for Stainless Steel - Austenitic- 180 HB
• Optimal for Stainless Steel - Duplex- 250 HB
