Description

***This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.***

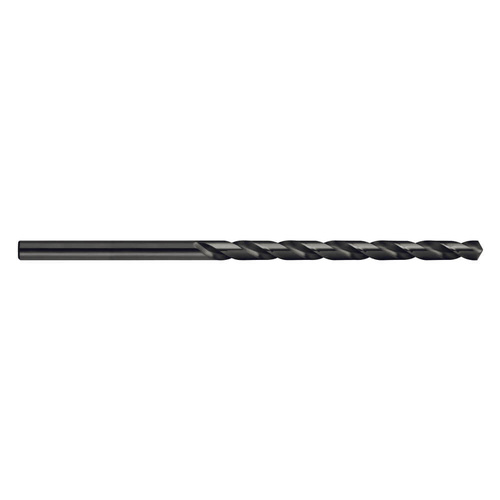

Sutton Tools Long Series Drill Bits - Blue Bullet

Features

Specifications

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

AIMS SKU CA0003916

Brand Sutton Tools

Model Number D1130610

Barcode Number 9311963166216

Type Long Drill Bit

Material High Speed Steel (HSS)

Finish Steam Oxide (Blue)

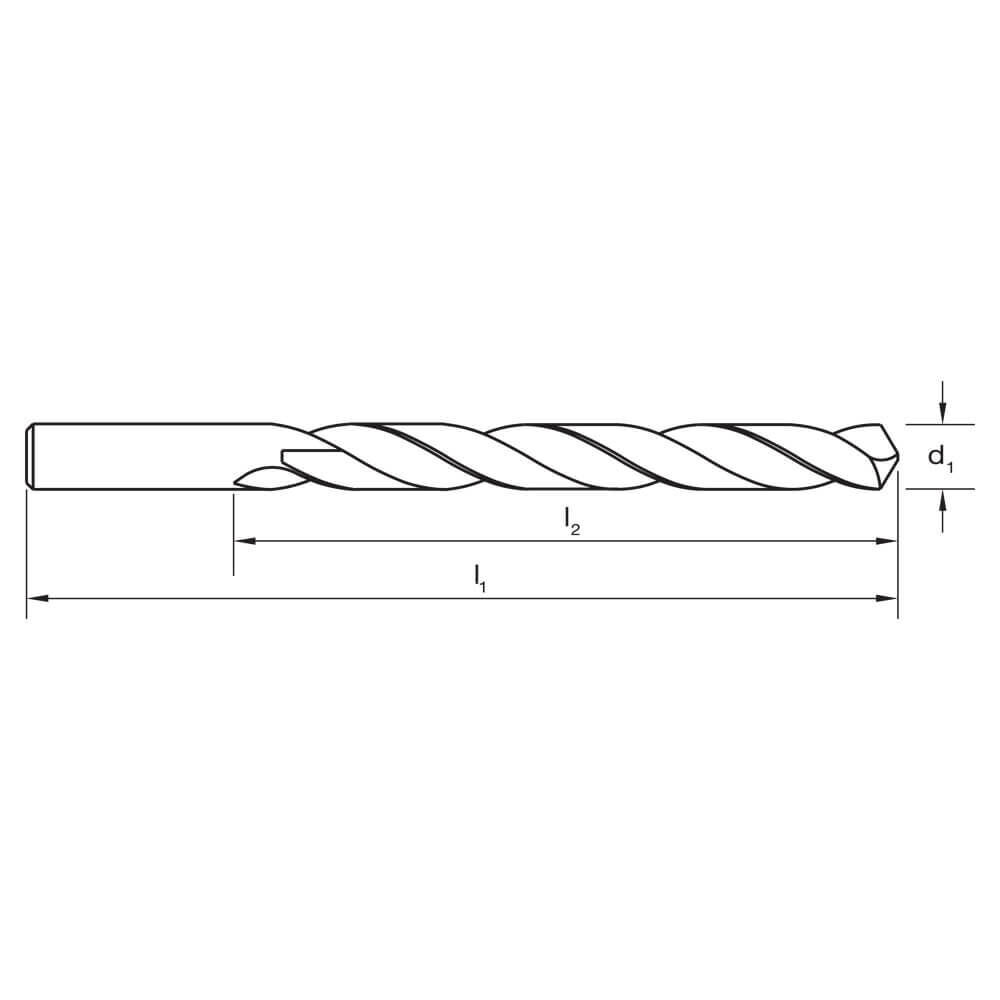

Thread Diameter (mm) 6.1

Overall Length (mm) 156

Flute Length (mm) 95

Helix Angle R30

Shank Form A

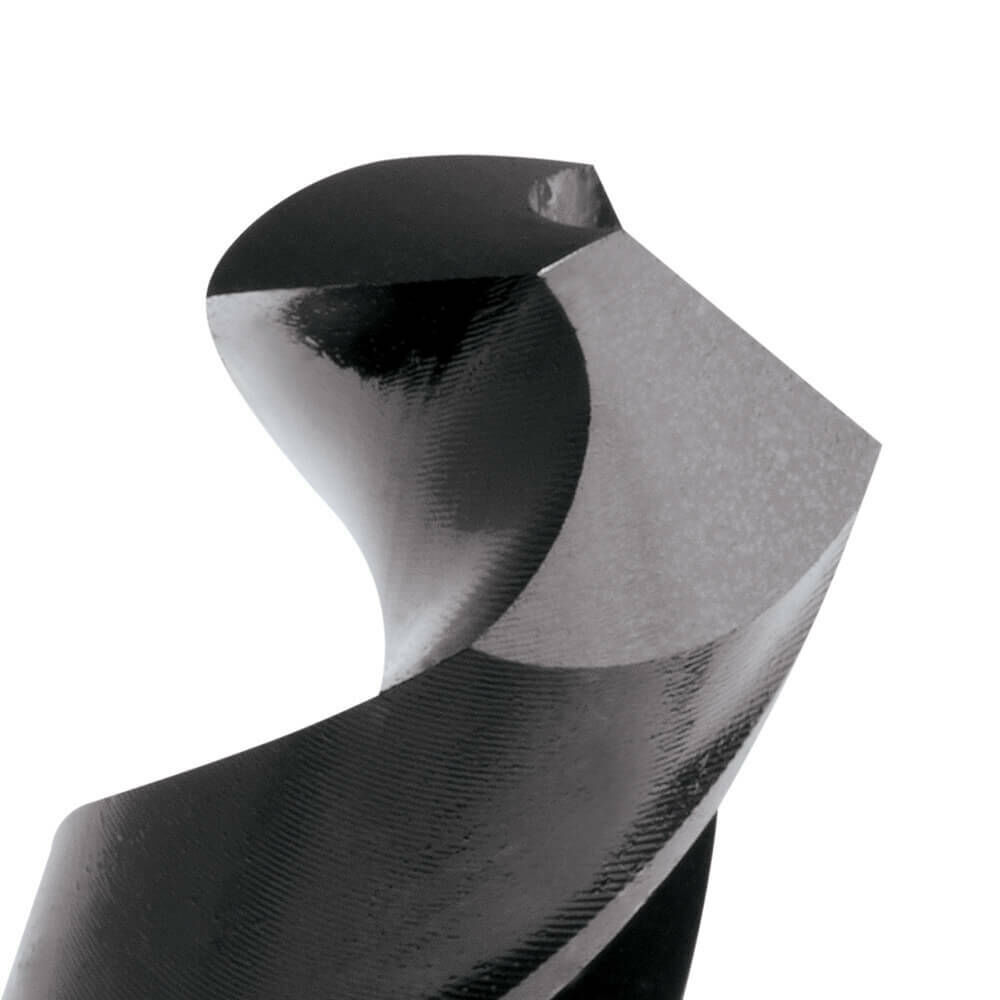

Point Angle 118

Point Form Form A

Maximum Cut Depth 8XD

Point Tolerance h8

Group Code D113
