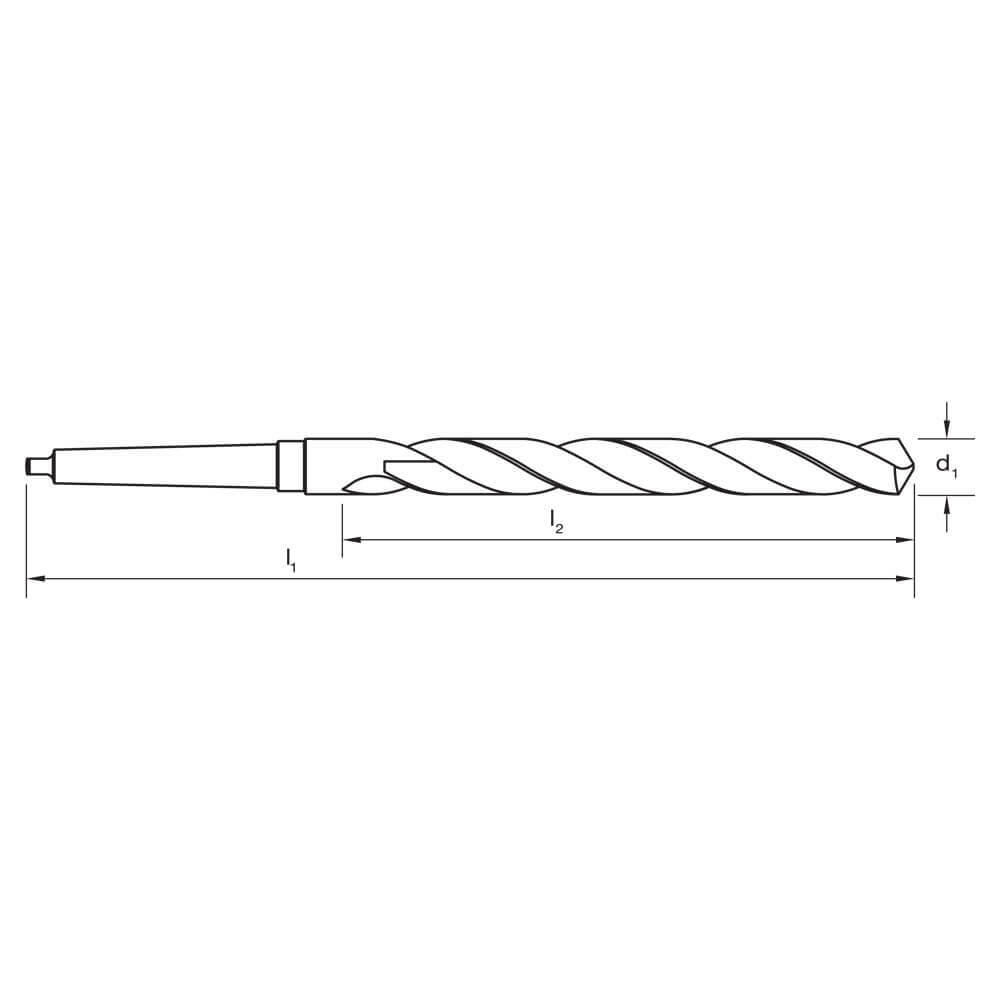

Sutton D1401000 10mm #1 Morse Taper Shank Drill Bit -Series - HSS

Description

Description

General purpose drill

Features

Morse Taper Shank Drill Long Series
Suitable for materials up to 900N/mm2

Specifications

Designation: N
Material: High Speed Steel
Finish: Blue
Maximum Cut Depth: 8XD
Shank Form: MTS
Helix Angle: R30
X: als
Point Tolerance: h8
Point Angle: 118°

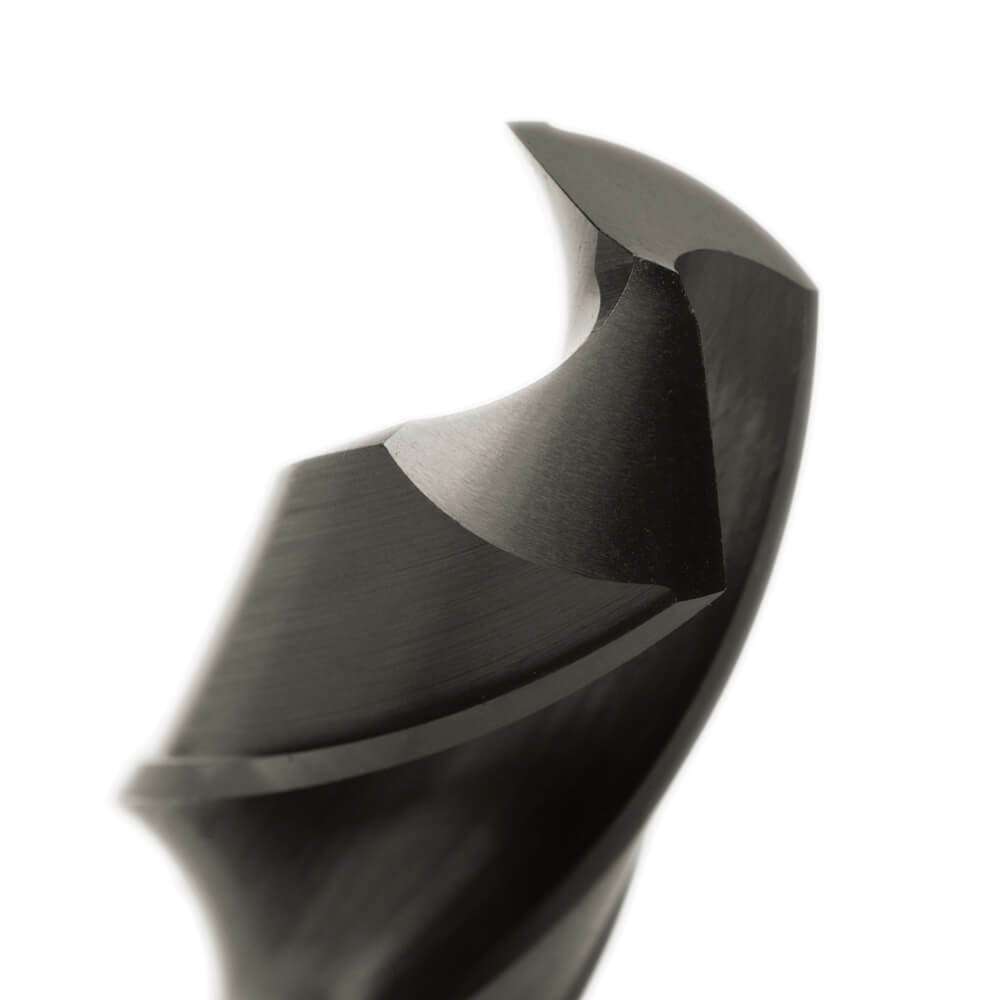

Point Form: Form A
Cutting Edges: ul
Standard: DIN 341

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB

Specifications

AIMS SKU A0004328

Brand Sutton Tools

Model Number D1401000

Barcode Number 9311963542638

Morse Taper #1

Thread Diameter (mm) 10

Overall Length (mm) 197

Flute Length (mm) 116

Group Code D140
Type Morse Taper Shank
System of Measurement DIN 341,Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Point Angle 118
Point Form Form A
Maximum Cut Depth 8XD
Point Tolerance h8
