Sutton D1530050 0.5mm Stub Drill Bit R40 VA DIN1897 - Cobalt Steel TiAlN

Description

Descriptions

High performance drill
Excellent solution for austenitic stainless steels and most long chipping materials

Features

Stub Drill R40 VA
Optimized geometry ensures no work hardening and high productivity
Endmill shank for greater accuracy
TiAlN for longer tool life

Specifications

Designation: VA
Material: High Speed Steel Cobalt
Finish: TiAIN
Maximum Cut Depth: 3XD
Shank Form: A
Helix Angle: R40
X: als
Point Tolerance: h8
Shank Tolerance: h7
Point Form: 4 Facet
Cutting Edges: ul
Standard: DIN 1897

Specifications

AIMS SKU A0004733

Brand Sutton Tools

Model Number D1530050

Barcode Number 9311963550275

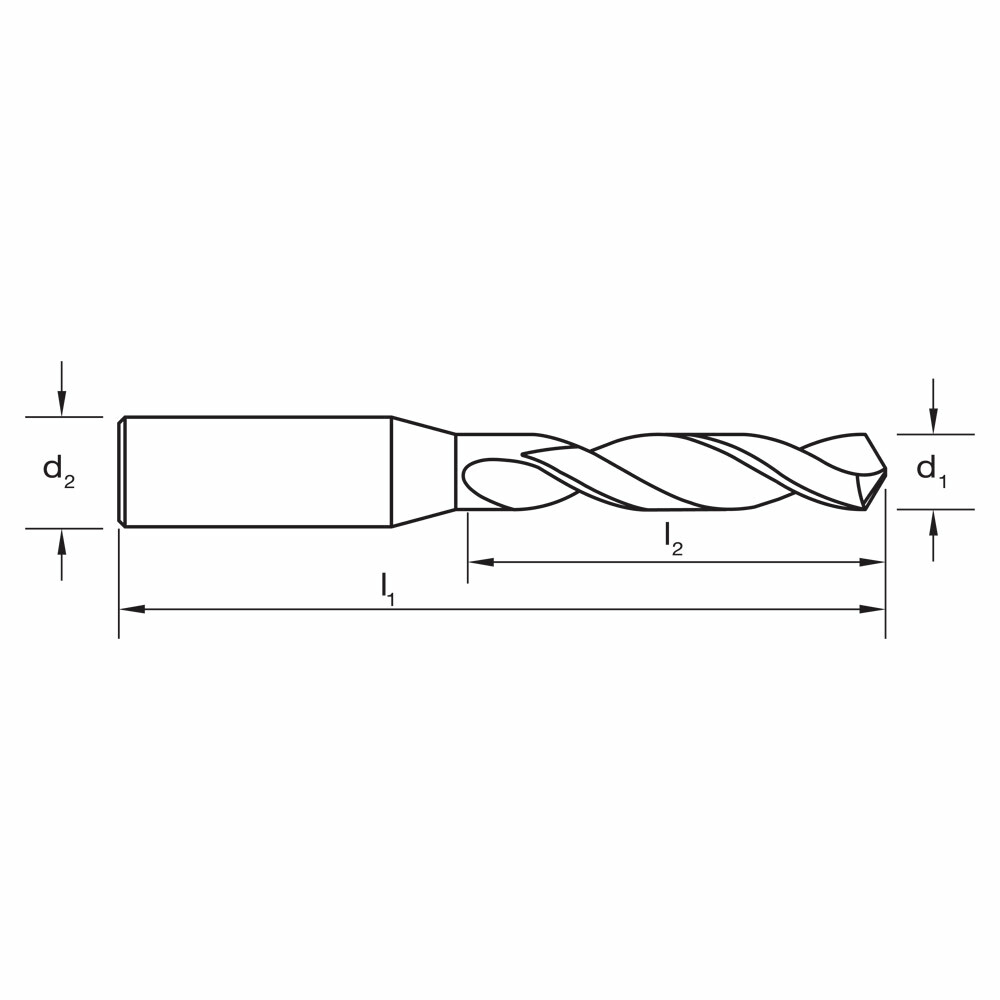

Thread Diameter (mm) 0.5

Overall Length (mm) 38

Shank (mm) 3

Flute Length (mm) 3

Point Angle 140

Group Code D153
Type Stub Drill Bit
System of Measurement DIN 1897,Metric
Material High Speed Steel Cobalt (HSS Co5%)
Finish Titanium Aluminium Nitride (TiAIN)
Helix Angle R40
Shank Form A
Point Form 4 Facet
Maximum Cut Depth 3XD
Shank Tolerance h7
Point Tolerance h8
