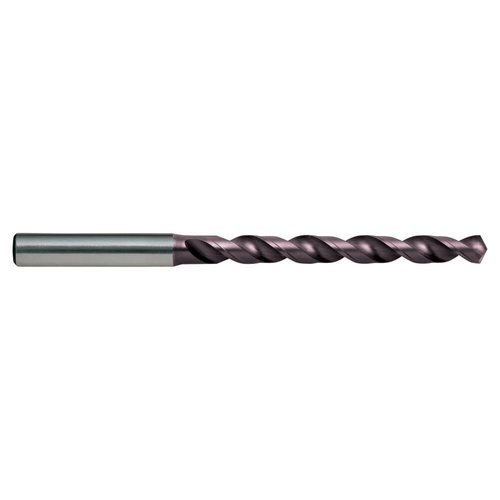

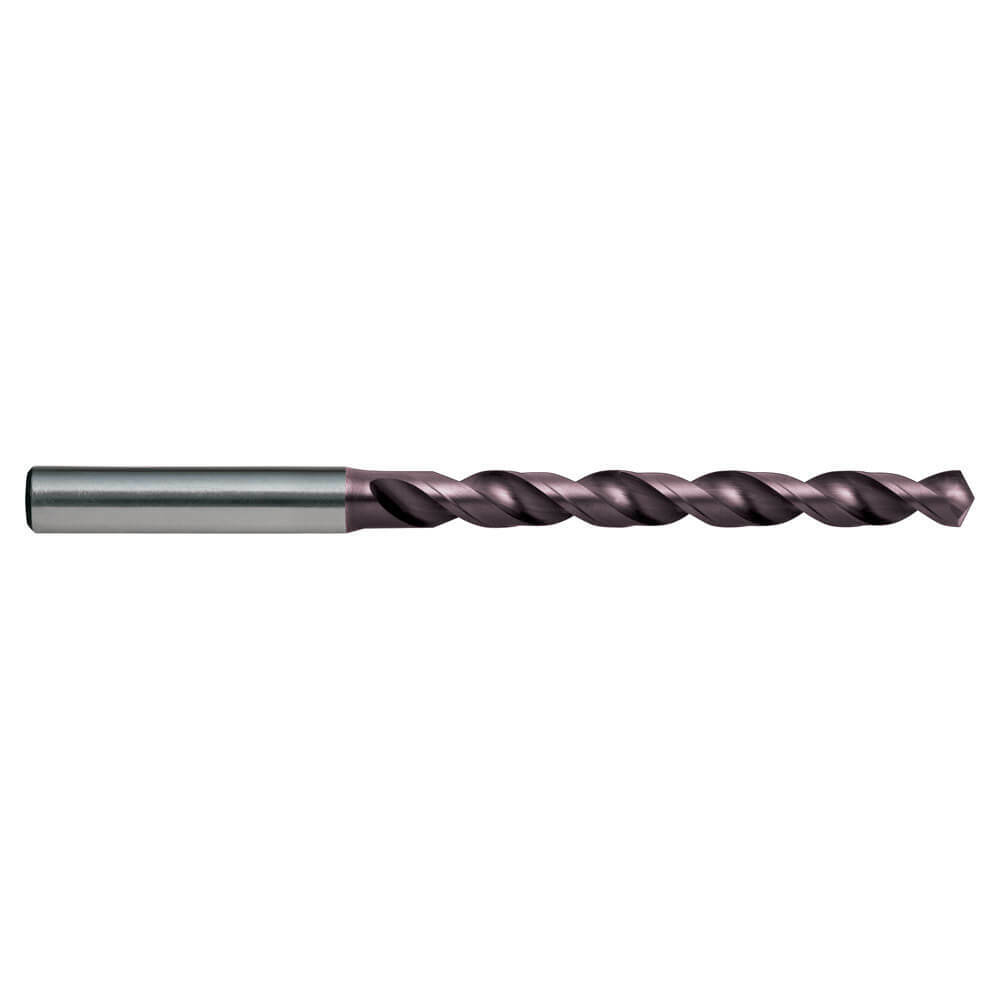

Sutton D1690200 2mm Jobber Drill Bit Black Magic R40 VA - Cobalt TiAlN

Description

Descriptions

High performance drill
Excellent solution for austenitic stainless steels and most long chipping materials

Features

Optimized geometry ensures no work hardening and high productivity
Endmill shank for greater accuracy
TiAlN for longer tool life

Specifications

Designation: VA
Material: High Speed Steel Cobalt
Finish: TiAIN
Maximum Cut Depth: 5XD
Shank Form: A
Helix Angle: R40
X: als
Point Tolerance: h8
Shank Tolerance: h7

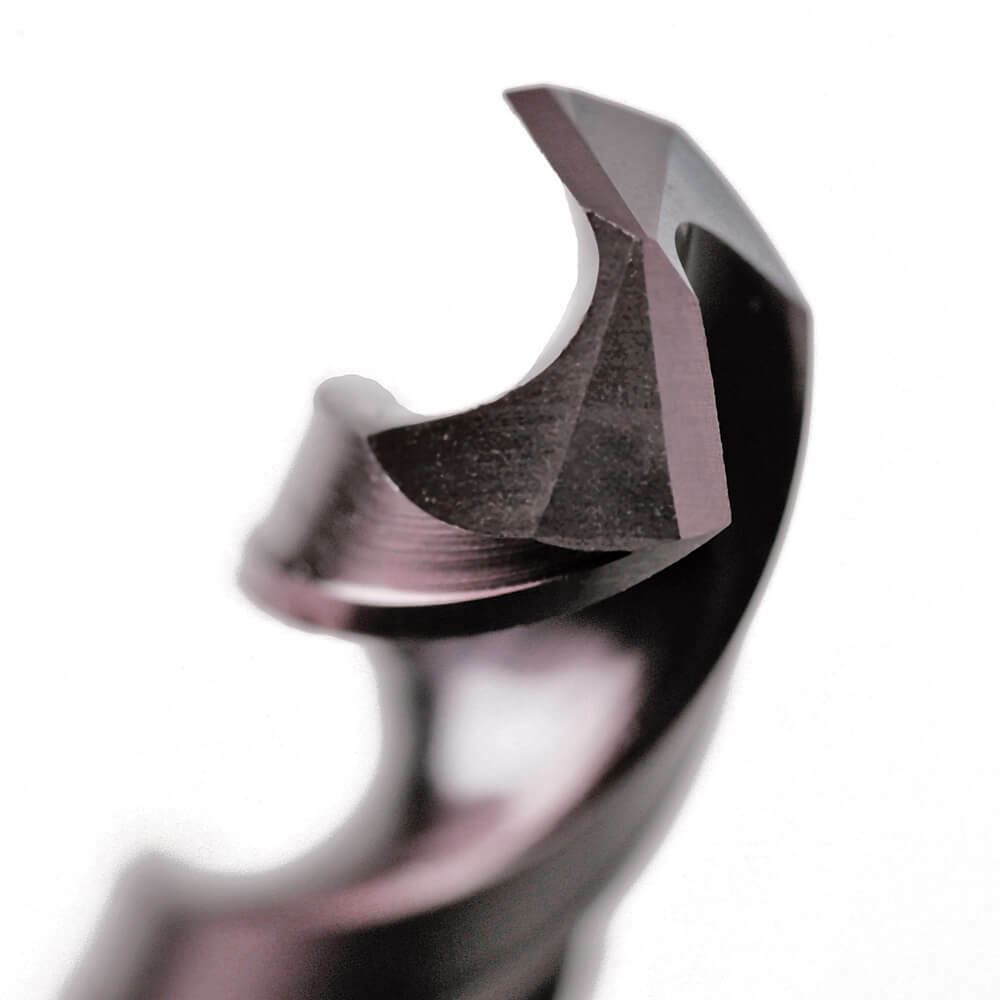

Point Form: 4 Facet Form C
Cutting Edges: ul
Standard: DIN 338

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel – Precipitation Hardening- 250 HB

Specifications

AIMS SKU A0005553

Brand Sutton Tools

Model Number D1690200

Barcode Number 9311963424385

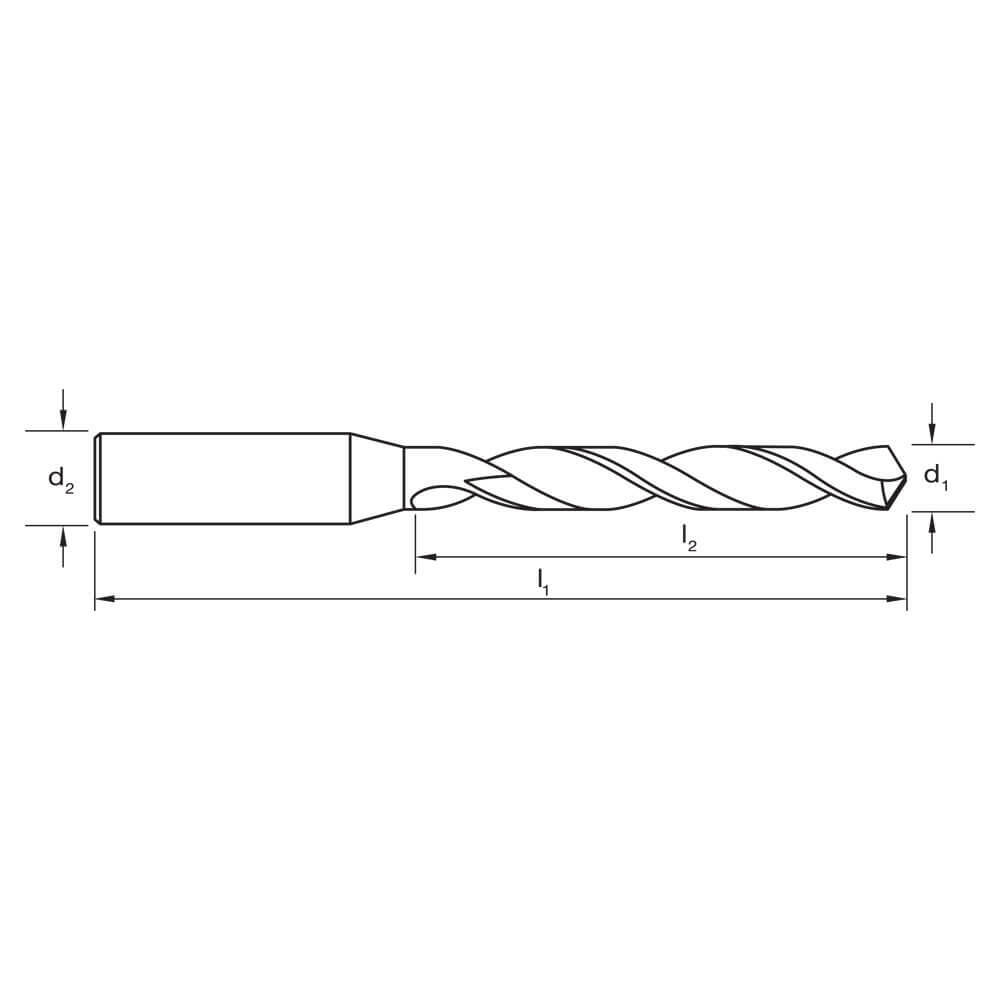

Thread Diameter (mm) 2

Overall Length (mm) 49

Shank (mm) 3

Flute Length (mm) 24

Point Angle 130

Group Code D169
Type Jobber Drill Bit
System of Measurement Metric,DIN 338
Material High Speed Steel Cobalt (HSS Co5%)
Finish Titanium Aluminium Nitride (TiAIN)
Helix Angle R40
Shank Form A
Point Form 4 Facet Form C
Maximum Cut Depth 5XD
Shank Tolerance h7
Point Tolerance h8
