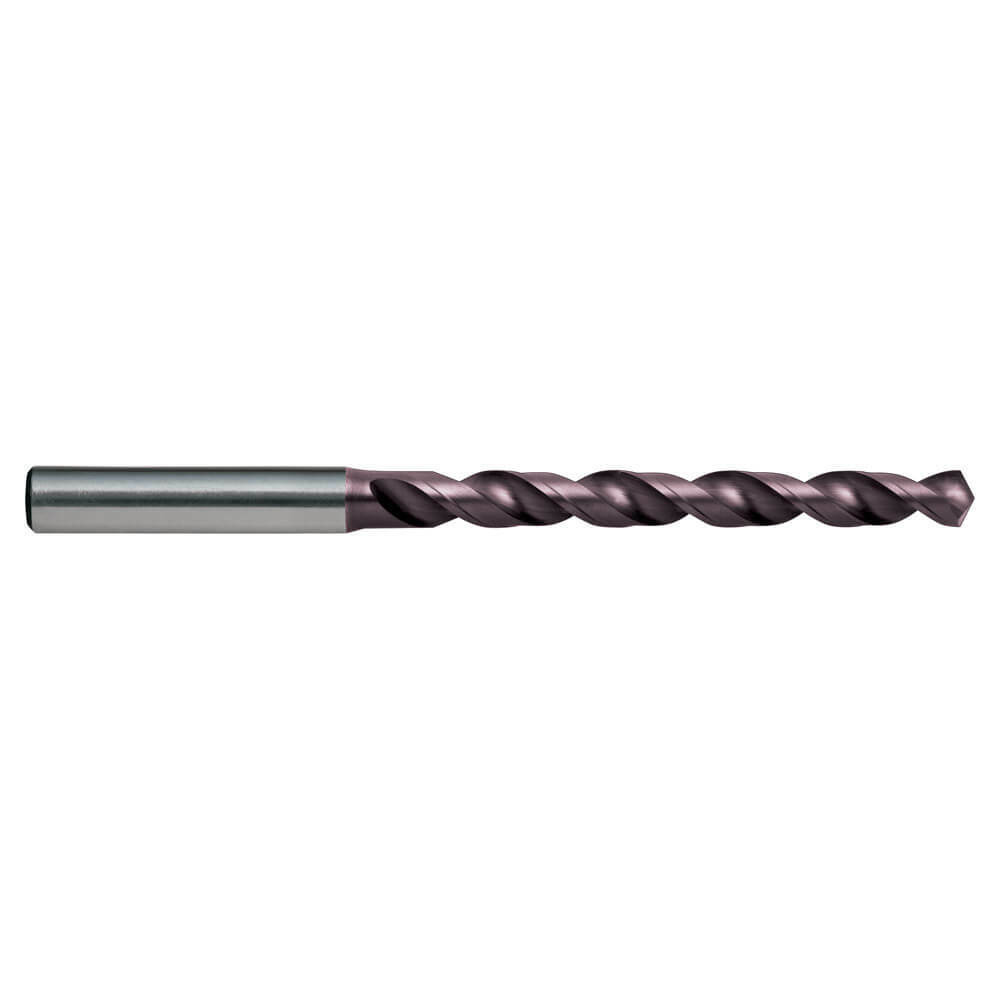

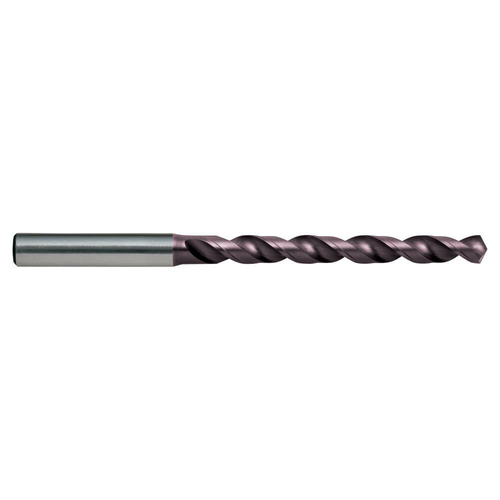

Sutton D169 Black Magic Jobber Drill Bit - Imperial - R40 VA Cobalt TiAlN - Sutton Tools

Description

Descriptions

High performance drill
Excellent solution for austenitic stainless steels and most long chipping materials

Features

Optimized geometry ensures no work hardening and high productivity
Endmill shank for greater accuracy
TiAlN for longer tool life

Specifications

Designation: VA
Material: High Speed Steel Cobalt
Finish: TiAIN
Maximum Cut Depth: 5XD
Shank Form: A
Helix Angle: R40
X: als
Point Tolerance: h8
Shank Tolerance: h7

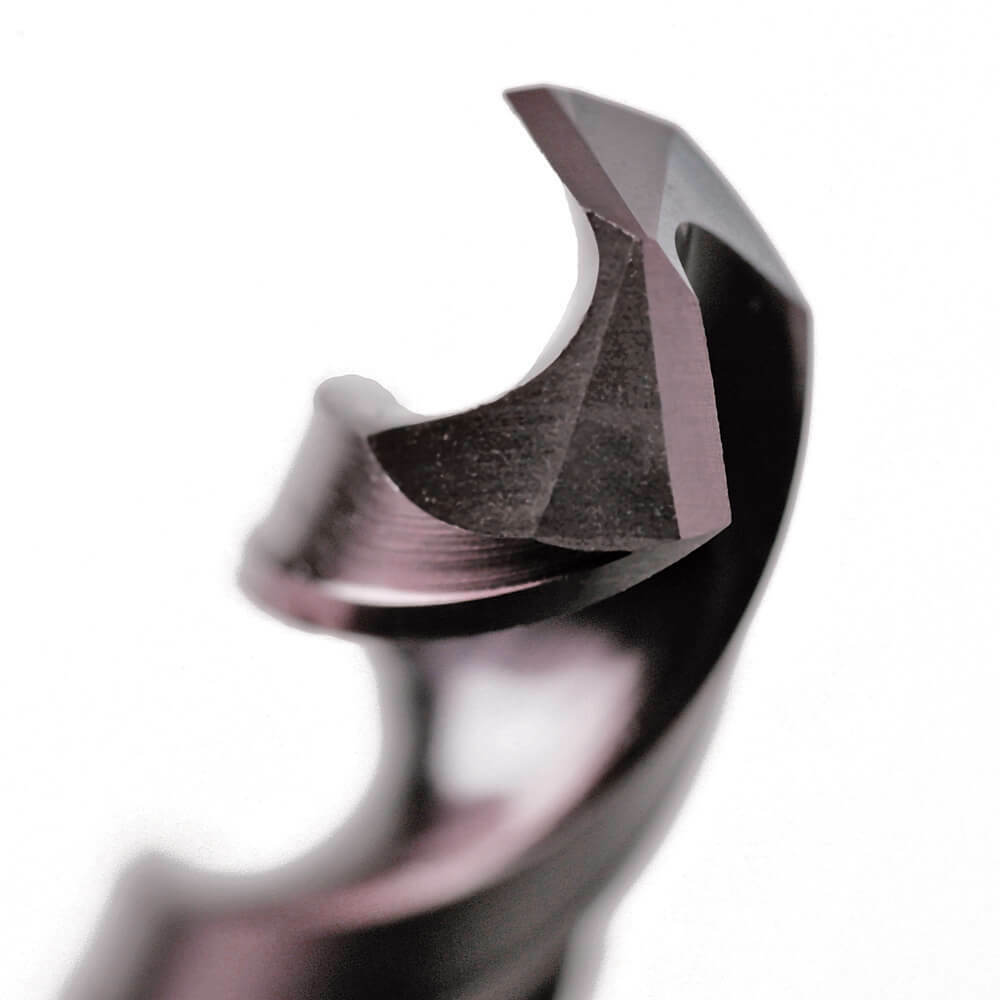

Point Form: 4 Facet Form C
Cutting Edges: ul
Standard: DIN 338

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel – Precipitation Hardening- 250 HB

Specifications

AIMS SKU A0005633

Brand Sutton Tools

Model Number D1690833

Barcode Number 9311963427287

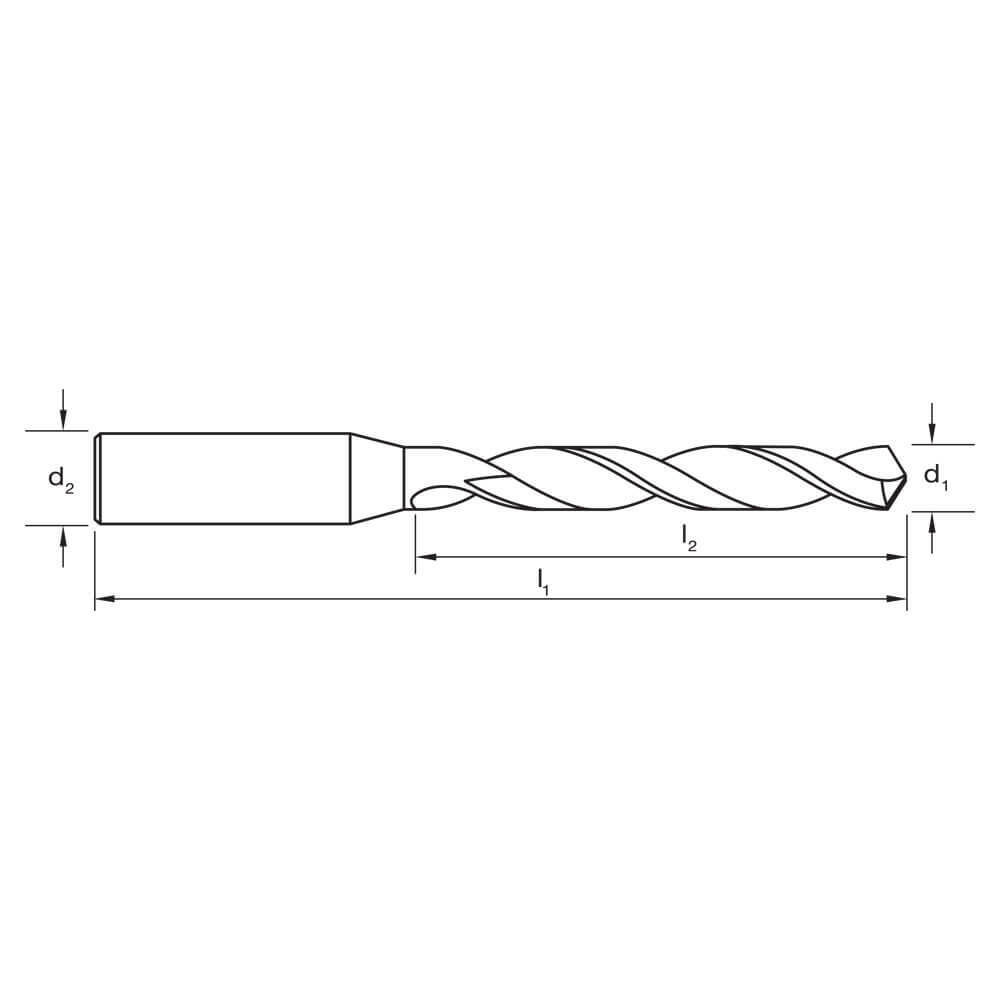

Thread Diameter (mm) 8.33

Thread Diameter (inch) 21/64

Overall Length (mm) 117

Shank (mm) 10

Flute Length (mm) 75

Point Angle 120

Group Code D169
Type Jobber Drill Bit
System of Measurement Imperial,DIN 338
Material High Speed Steel Cobalt (HSS Co5%)
Finish Titanium Aluminium Nitride (TiAIN)
Helix Angle R40
Shank Form A
Point Form 4 Facet Form C
Maximum Cut Depth 5XD
Shank Tolerance h7
Point Tolerance h8
