Sutton D188 Reduced Shank Drill Bit - Metric - 12.5mm Shank - HSS - Sutton Tools

Description

Descriptions

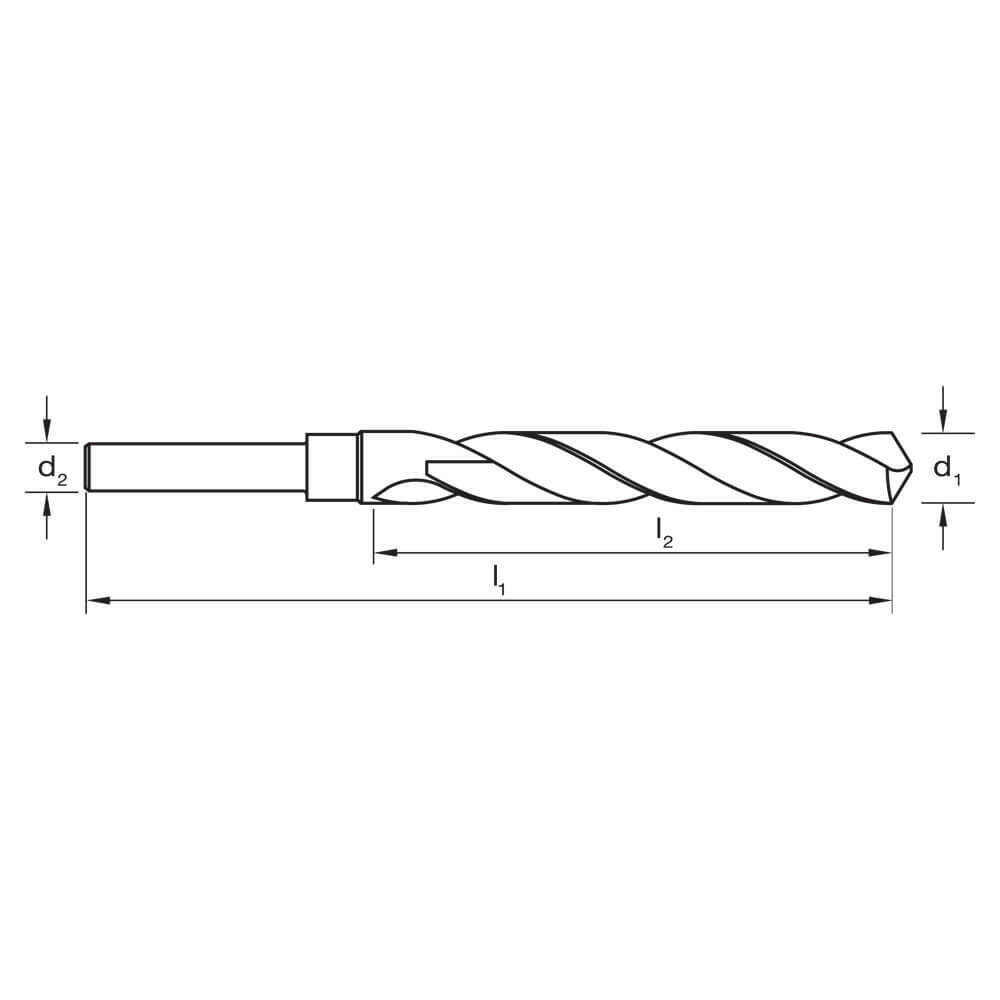

Sutton Tools Reduced Shank Drills are designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring. Reduced shanks suit 13mm drill chucks. All drills have a 152mm overall length and 86mm flue length.

Features

Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
Reduced shanks suit 13mm drill chucks

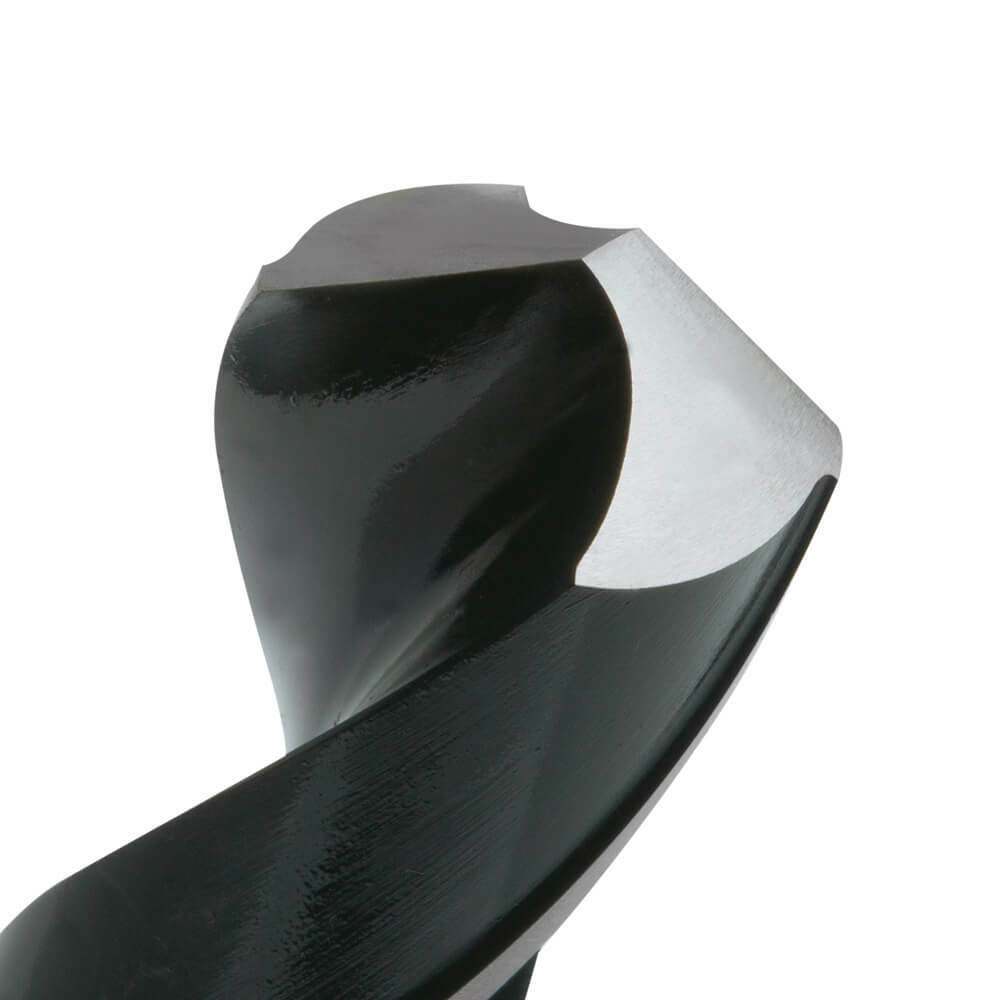

118° standard point for general purpose applications
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

Designation: N
Material: HSS
Finish: Blu
Max Cut Depth: 5 x D
Shank Form: A
Helix Angle: R30
Point Tolerance: h8
Point Angle: 118°
Point Form: Form A
Standard: Sutton
ISO: H
VDI: 41
Description: Cast Iron
Condition: Hardened and Tempered
Hardness: 55HRC

Applications

Effective use on aluminium, copper/brass, cast iron, and PVC plastic
Optimal use on steel

Specifications

AIMS SKU A0006609

Brand Sutton Tools

Model Number D1881350

Barcode Number 9311963011646

Thread Diameter (mm) 13.5

Overall Length (mm) 152

Shank (mm) 12.5

Flute Length (mm) 86

Group Code D188
Type Reduced Shank Drill Bit
System of Measurement Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Shank Form A
Point Angle 118
Point Form Form A
Point Tolerance h8
Max Cut Depth 5XD
