Description

Descriptions

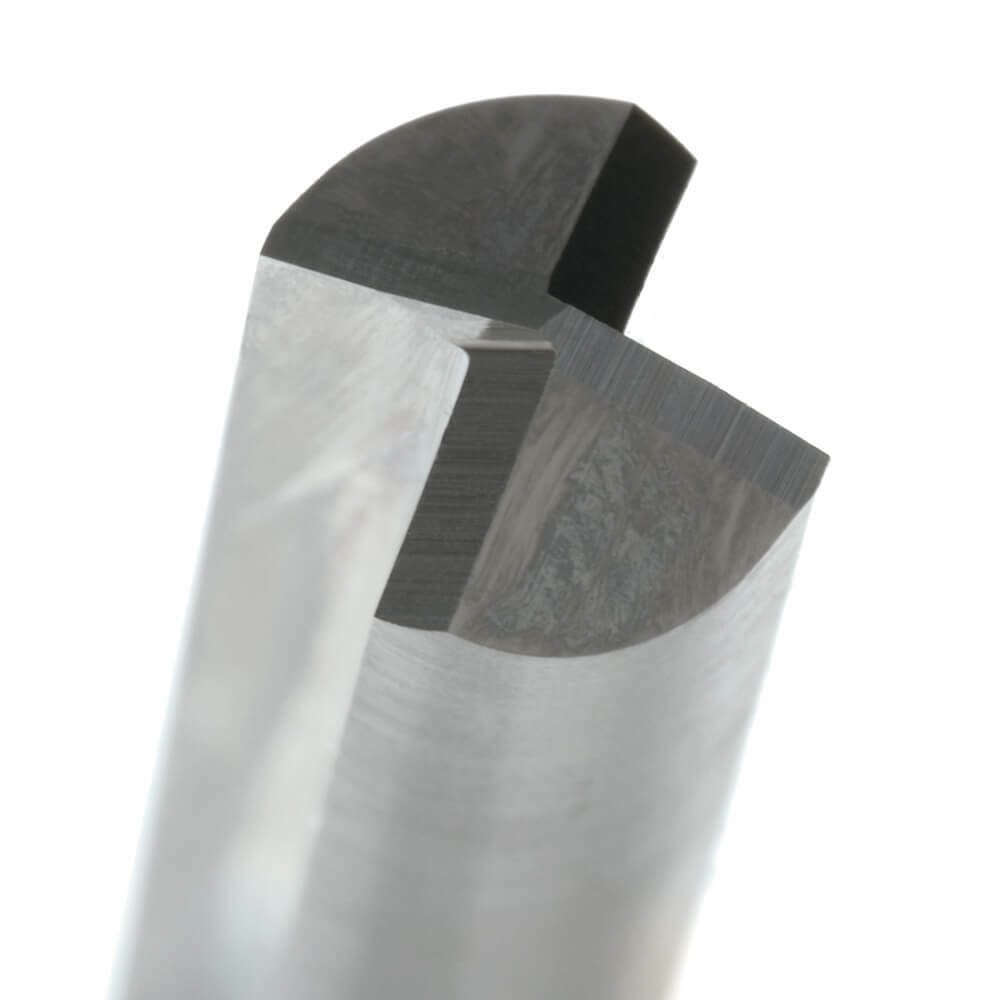

  • 3xD Drill Straight Flute GG
  • Straight flutes for increased strength and chip control

Features

  • Suitable for cast irons
  • TiCN coated for longer tool life

Specifications

  • Designation: CG
  • Material: VHM
  • Finish: Bright
  • Maximum Cut Depth: 3XD
  • Shank Form: HA
  • X: als
  • Point Tolerance: m7
  • Shank Tolerance: h6
  • Point Angle: 140°
  • Point Form: Form C (Facet)
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Cast Iron – Chilled- 400 HB

Specifications

  • AIMS SKU A0007052
  • Brand Sutton Tools
  • Model Number D3000159
  • Barcode Number 9311963360928
  • Thread Diameter (inch) 1/16
  • Overall Length (inch) 1 5/8
  • Shank (inch) 1/16
  • Flute Length (inch) 5/8
  • Group Code D300
  • Type Carbide Drill Bit
  • System of Measurement Imperial
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Bright
  • Shank Form HA
  • Point Angle 140
  • Point Form Form C (Facet)
  • Maximum Cut Depth 3XD
  • Shank Tolerance h6
  • Point Tolerance m7
SKU: A0007052

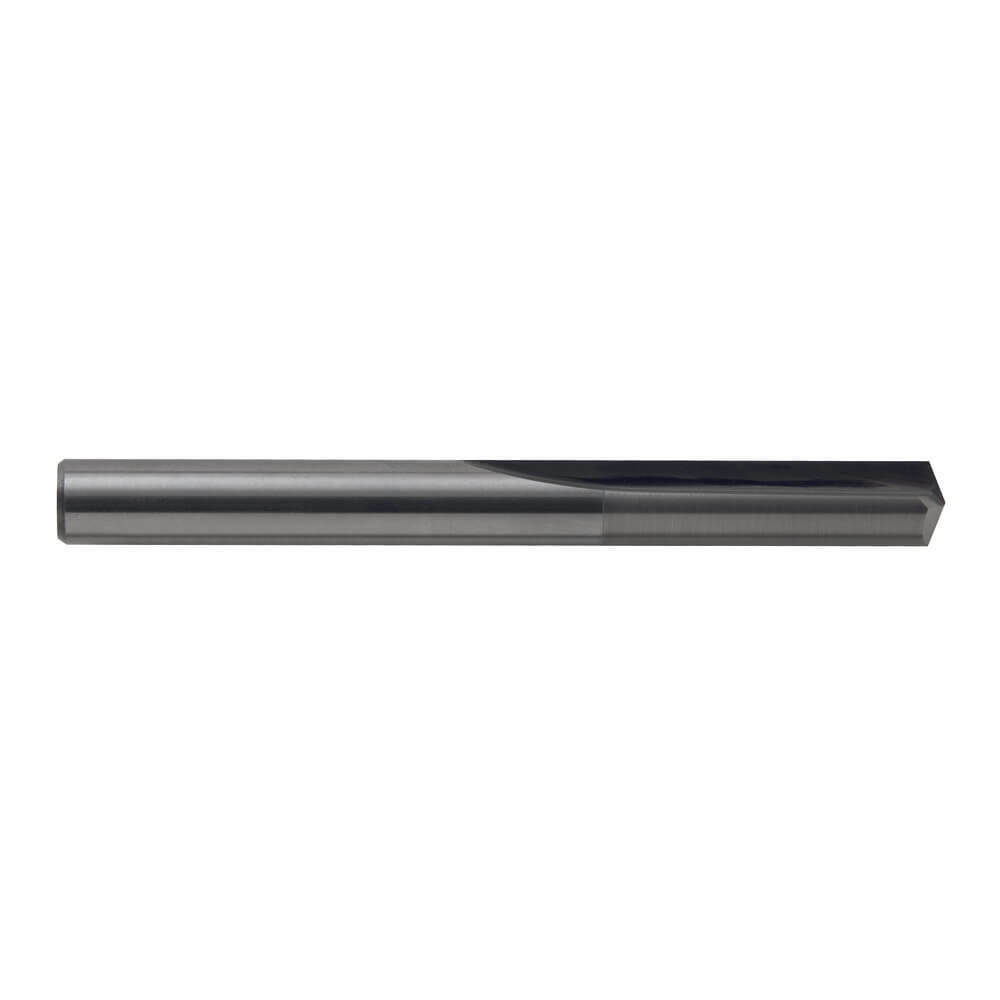

Sutton D3000159 1/16" Solid Carbide Drill Bit - 3xD - Straight Flute - VHM

Sutton Tools Carbide Bits - 3xD - Straight Flute GG

$43.90
